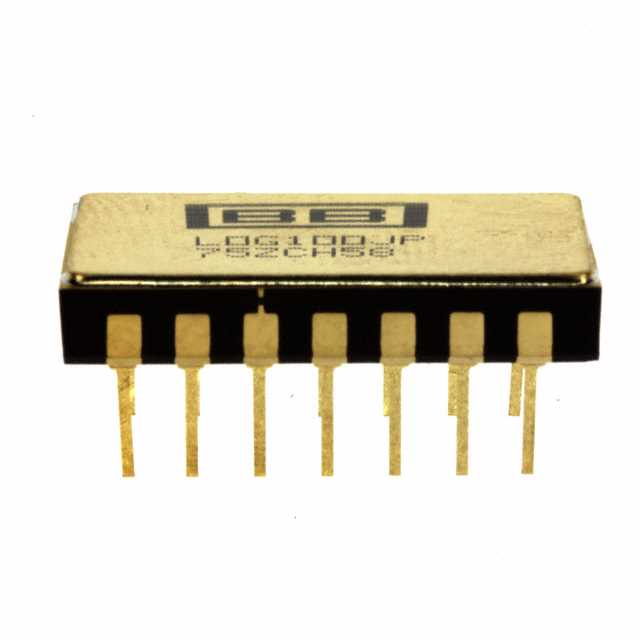

LOG100JP
IC LOG/LOG 1 CIRCUIT 14CDIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LOG100JP is a logarithmic and log ratio amplifier featuring a single circuit within a 14-CDIP package. This component offers a -3dB bandwidth of 45 kHz and operates with a typical supply current of 7mA, supporting a voltage supply span from 24V to 36V. Key specifications include an input bias current of 1 pA and an input offset voltage of 700 µV. The through-hole mounting design and 14-CDIP package facilitate integration into various instrumentation and control systems. Applications for this device include precision current and voltage measurement, signal compression, and data acquisition in industries such as industrial automation and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Logarithmic and Log Ratio |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 7mA |
| Slew Rate | - |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 700 µV |
| Supplier Device Package | 14-CDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 5 mA |
| -3db Bandwidth | 45 kHz |
| Voltage - Supply Span (Min) | 24 V |
| Voltage - Supply Span (Max) | 36 V |
