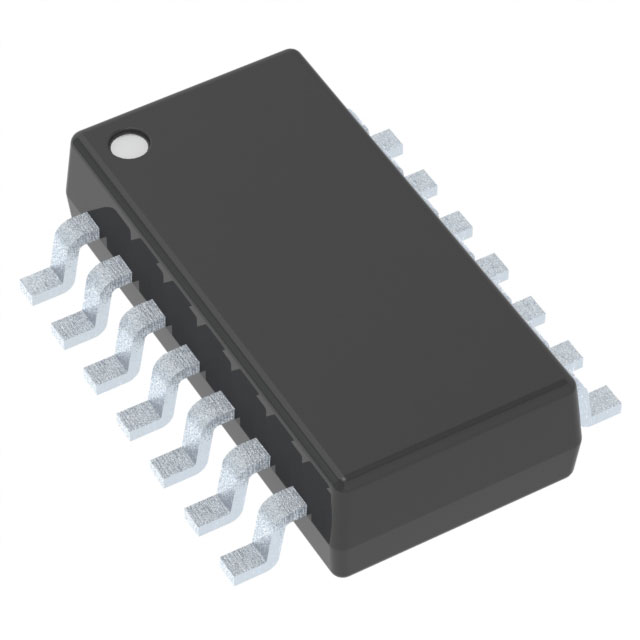

LMV824IPWRE4
IC OPAMP GP 4 CIRCUIT 14TSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LMV824IPWRE4 is a 4-circuit general-purpose operational amplifier featuring rail-to-rail output. This component, part of the LMV® series, operates with a supply voltage span from 2.5V to 5.5V and a typical supply current of 1mA. It offers a gain bandwidth product of 5.5 MHz and a slew rate of 1.9V/µs, with an input bias current of 40 nA and an input offset voltage of 1 mV. The device is supplied in a 14-TSSOP package (0.173", 4.40mm width) for surface mounting. It is designed for operation across an industrial temperature range of -40°C to 125°C and can deliver 45 mA of output current per channel. This amplifier finds application in instrumentation and buffer amplifier circuits across various industrial sectors. The LMV824IPWRE4 is provided in tape and reel packaging.
Additional Information
Series: LMV®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1mA |
| Slew Rate | 1.9V/µs |
| Gain Bandwidth Product | 5.5 MHz |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 14-TSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
