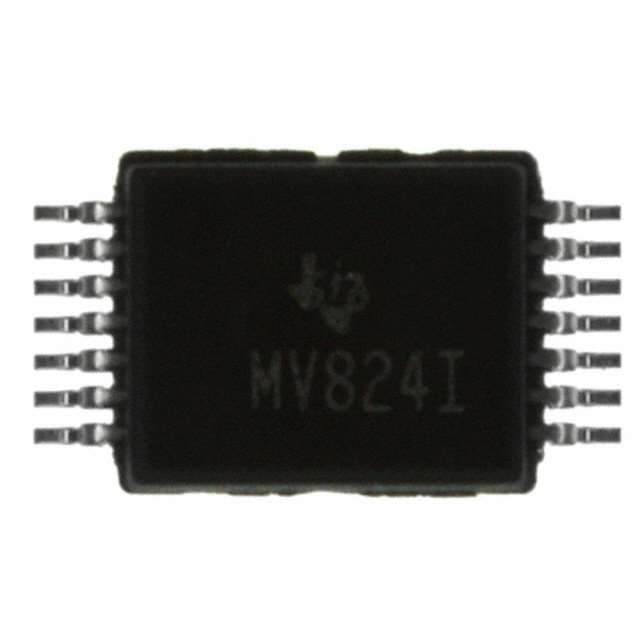

LMV824IDGVR
IC OPAMP GP 4 CIRCUIT 14TVSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LMV824IDGVR, a general-purpose operational amplifier, features four independent channels within a 14-TVSOP package. This device offers rail-to-rail output and input capabilities, operating from a minimum supply voltage of 2.5V up to 5.5V. With a gain bandwidth product of 5.5 MHz and a slew rate of 1.9V/µs, it is suitable for applications requiring moderate speed and precision. The input bias current is rated at 40 nA, and the output current per channel reaches 45 mA. This amplifier is designed for surface mount applications and operates across a wide temperature range of -40°C to 125°C. Its characteristics make it a viable component for industrial automation, consumer electronics, and medical instrumentation.
Additional Information
Series: LMV®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TFSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1mA |
| Slew Rate | 1.9V/µs |
| Gain Bandwidth Product | 5.5 MHz |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 14-TVSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
