LMV358QPWRG4Q1
IC OPAMP GP 2 CIRCUIT 8TSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

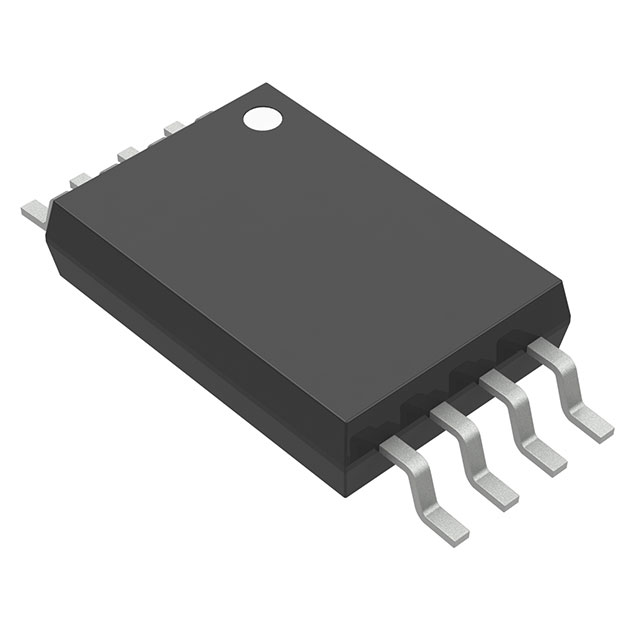

The Texas Instruments LMV358QPWRG4Q1 is a general-purpose, dual-channel operational amplifier housed in an 8-TSSOP package. Featuring rail-to-rail output capability, this LMV® series component offers a 1 MHz gain bandwidth product and a 1 V/µs slew rate. It operates from a 2.7V to 5.5V supply span with a typical quiescent current of 130µA per channel. Input bias current is specified at 15 nA, and output current per channel can reach 160 mA. This device is AEC-Q100 qualified, making it suitable for automotive applications. Industries such as automotive, industrial, and consumer electronics commonly utilize this component for signal conditioning and amplification tasks.
Additional Information
Series: LMV®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 130µA (x2 Channels) |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 15 nA |
| Voltage - Input Offset | 1.7 mV |
| Supplier Device Package | 8-TSSOP |
| Grade | Automotive |
| Number of Circuits | 2 |
| Current - Output / Channel | 160 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Qualification | AEC-Q100 |
