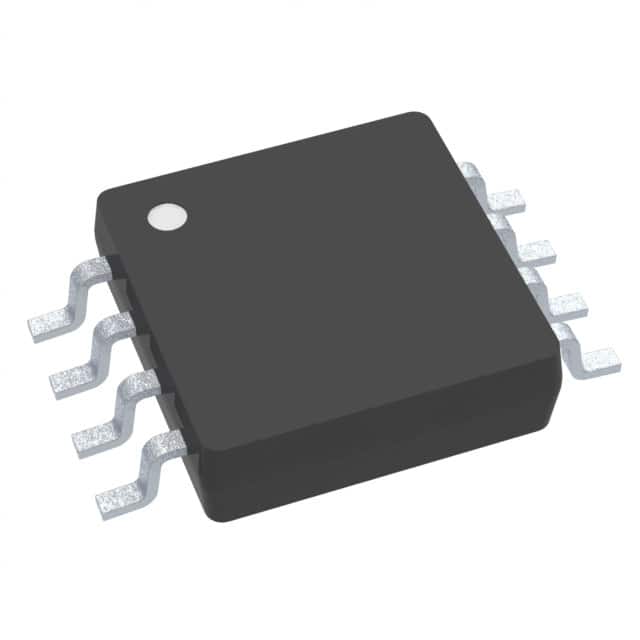

LMP7702MM
IC OPAMP GP 2 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LMP7702MM, a dual general-purpose operational amplifier from the LMP® series, delivers precision performance for demanding applications. This device features rail-to-rail output and input capabilities, enabling full utilization of the supply voltage range. With a low input bias current of 0.2 pA and an offset voltage of 37 µV, the LMP7702MM is well-suited for high-impedance signal conditioning. The amplifier offers a 2.5 MHz gain bandwidth product and a 1.1 V/µs slew rate, supporting moderate speed signal processing. Operating from a 2.7V to 12V supply, it consumes only 1.5mA per channel, making it efficient for battery-powered systems. The output current capability is 86 mA per channel. Packaged in an 8-VSSOP, this component is ideal for surface-mount assembly in instrumentation, medical devices, and portable electronics.
Additional Information
Series: LMP®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1.5mA (x2 Channels) |
| Slew Rate | 1.1V/µs |
| Gain Bandwidth Product | 2.5 MHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 37 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 86 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 12 V |
