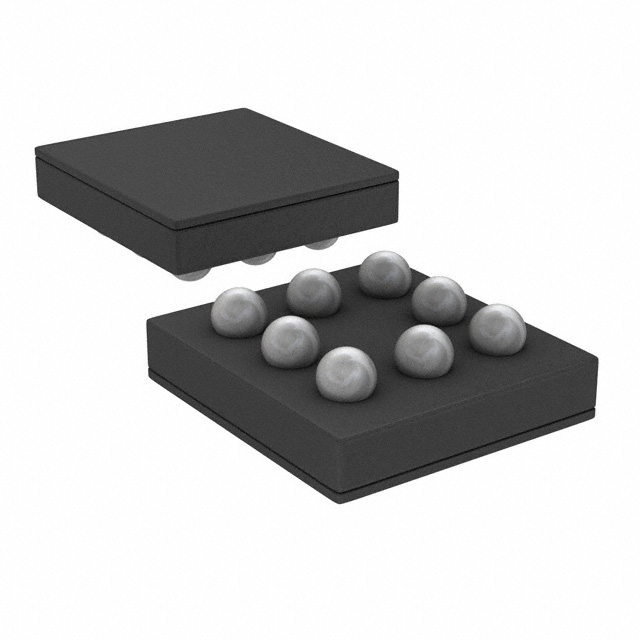

LMC6035ITL/NOPB
IC CMOS 2 CIRCUIT 8DSBGAManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LMC6035ITL-NOPB is a dual-circuit CMOS amplifier featuring rail-to-rail output and differential operation. With a gain bandwidth product of 1.4 MHz and a slew rate of 1.5 V/µs, this device is suitable for applications requiring precision amplification. It exhibits an exceptionally low input bias current of 0.02 pA, making it ideal for high-impedance signal acquisition. The amplifier operates from a supply voltage range of 2V to 15.5V, drawing a quiescent current of 650µA per channel. The LMC6035ITL-NOPB is supplied in an 8-DSBGA (1.56x1.56) package, designed for surface mounting. This component finds application in instrumentation and battery-powered systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFBGA, DSBGA |
| Output Type | Differential, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 650µA (x2 Channels) |
| Slew Rate | 1.5V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 0.02 pA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 8-DSBGA (1.56x1.56) |
| Number of Circuits | 2 |
| Current - Output / Channel | 8 mA |
| Voltage - Supply Span (Min) | 2 V |
| Voltage - Supply Span (Max) | 15.5 V |
