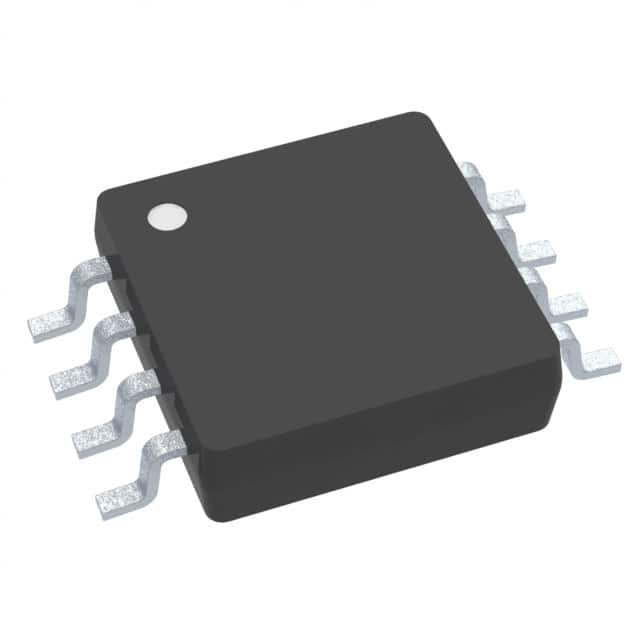

LM8272MM
IC OPAMP GP 2 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LM8272MM is a dual, general-purpose operational amplifier featuring rail-to-rail output. This device offers a gain bandwidth product of 15 MHz and a slew rate of 15 V/µs, making it suitable for various signal conditioning applications. With a supply voltage range from 2.5 V to 24 V, it is designed for operation across a broad spectrum of power requirements. The LM8272MM exhibits low input bias current of 2 µA and an input offset voltage of 700 µV. The amplifier's dual-circuit configuration is housed in an 8-VSSOP package for surface mounting. It is commonly utilized in industrial automation, medical equipment, and consumer electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.9mA (x2 Channels) |
| Slew Rate | 15V/µs |
| Gain Bandwidth Product | 15 MHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 700 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 65 mA |
| -3db Bandwidth | 12.5 MHz |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 24 V |
