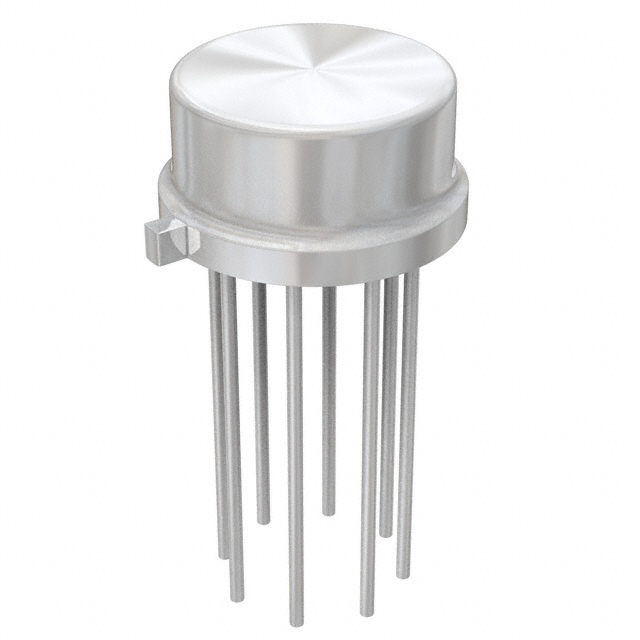

LM747H
IC OPAMP GP 2 CIRCUIT TO100-10Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LM747H is a dual general-purpose operational amplifier housed in a TO-100-10 metal can package. This component features a unity-gain bandwidth of 250 kHz and a slew rate of 0.2 V/µs, making it suitable for a variety of analog signal processing applications. With a maximum supply voltage span of 44 V and an operating temperature range of -55°C to 125°C, the LM747H offers robust performance across demanding environments. Key electrical characteristics include an input bias current of 500 nA and an output current capability of 50 mA per channel, alongside a voltage input offset of 5 mV. This device finds application in instrumentation and buffer amplification systems across diverse industries. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-100-10 Metal Can |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Current - Supply | - |
| Slew Rate | 0.2V/µs |
| Gain Bandwidth Product | 250 kHz |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | TO-100-10 |
| Number of Circuits | 2 |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 44 V |
| Voltage - Supply Span (Max) | 44 V |
Request a Quote
