LM7372MR
IC OPAMP VFB 2 CIRCUIT 8SOPWRPADManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

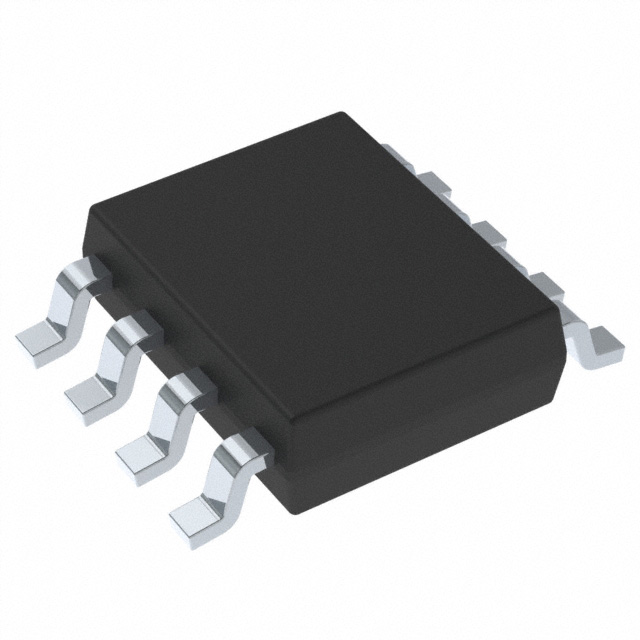

The Texas Instruments LM7372MR is a high-performance dual voltage feedback operational amplifier housed in an 8-SO PowerPad package. This component offers a 220 MHz -3dB bandwidth and a 3000 V/µs slew rate, making it suitable for demanding signal processing applications. With a gain bandwidth product of 120 MHz and a high output current capability of 260 mA per channel, the LM7372MR excels in driving loads. The device operates across a supply voltage range of 9 V to 36 V and draws a quiescent current of 13 mA per channel. Typical applications include active filters, video amplifiers, and high-speed data acquisition systems within the instrumentation and audio industries. It features a low input bias current of 2.7 µA and an input offset voltage of 2 mV, operating within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerSOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 13mA (x2 Channels) |
| Slew Rate | 3000V/µs |
| Gain Bandwidth Product | 120 MHz |
| Current - Input Bias | 2.7 µA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 8-SO PowerPad |
| Number of Circuits | 2 |
| Current - Output / Channel | 260 mA |
| -3db Bandwidth | 220 MHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
