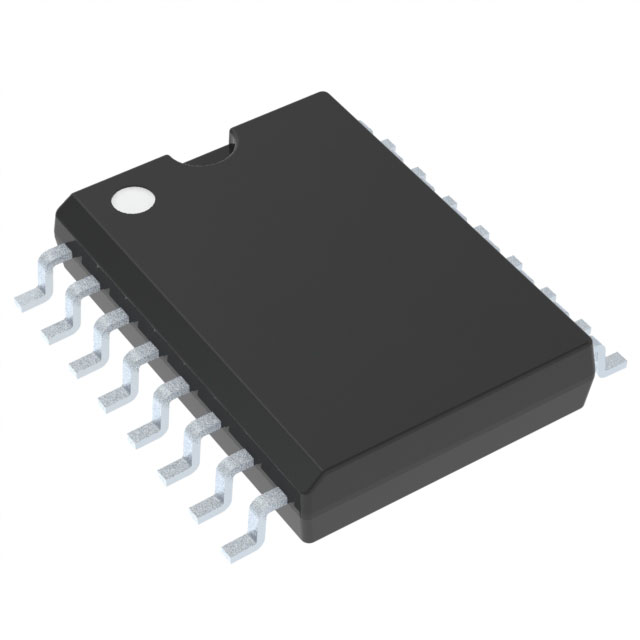

LM614CWMX
IC OPAMP GP 4 CIRCUIT 16SOICManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LM614CWMX is a general-purpose, quad operational amplifier housed in a 16-SOIC package. This surface-mount component offers a gain bandwidth product of 800 kHz and a slew rate of 0.7V/µs, making it suitable for a variety of analog signal processing applications. Each of the four circuits features a typical input bias current of 10 nA and an output current capability of 25 mA. The device operates across a wide supply voltage range, from 4V to 36V, with a total supply current of 450µA per channel. Its operating temperature range is 0°C to 70°C. The LM614CWMX is commonly utilized in instrumentation and buffer amplifier circuits across industrial and consumer electronics sectors. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 450µA (x4 Channels) |
| Slew Rate | 0.7V/µs |
| Gain Bandwidth Product | 800 kHz |
| Current - Input Bias | 10 nA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 16-SOIC |
| Number of Circuits | 4 |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
