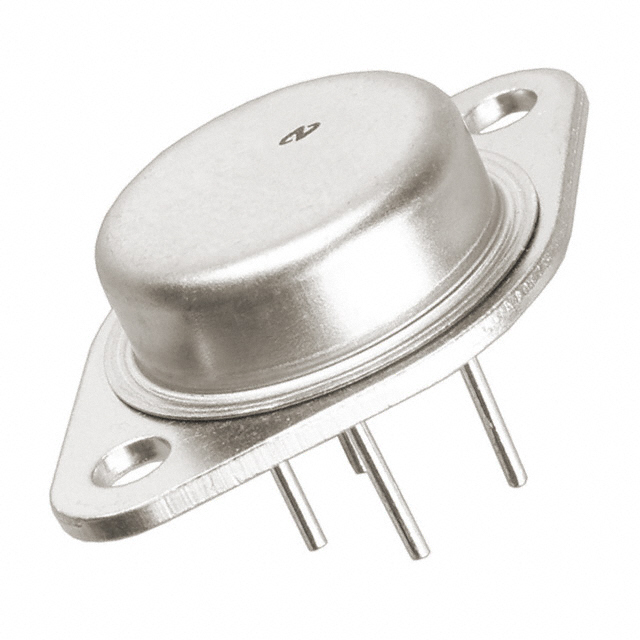

LM12CLK/NOPB
IC POWER 1 CIRCUIT TO3-4Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments LM12CLK-NOPB is a monolithic power operational amplifier designed for demanding applications. This single-circuit device, housed in a TO-3-4 package, offers a robust solution for high-current driving needs. Key specifications include a 700 kHz -3dB bandwidth, a substantial 16A output current capability per channel, and a wide supply voltage range from ±15V to ±60V. The input bias current is rated at 150 nA, with a voltage offset of 2 mV. With a slew rate of 9V/µs and a quiescent current of 60mA, the LM12CLK-NOPB is suitable for power supply regulation, motor control, and audio amplification circuits across various industrial sectors. The component is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-3-4 |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Power |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 60mA |
| Slew Rate | 9V/µs |
| Current - Input Bias | 150 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | TO-3-4 |
| Number of Circuits | 1 |
| Current - Output / Channel | 16 A |
| -3db Bandwidth | 700 kHz |
| Voltage - Supply Span (Min) | 15 V |
| Voltage - Supply Span (Max) | 60 V |
