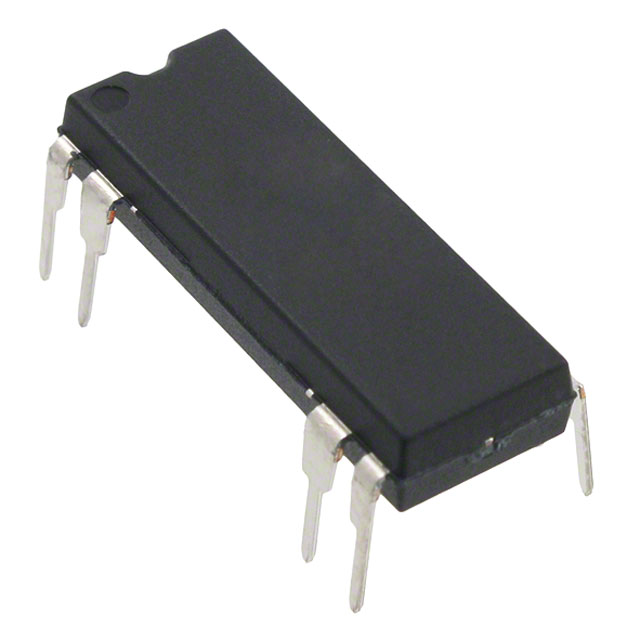

ISO122PG4
IC OPAMP ISOLATION 1 CIRC 8DIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments ISO122PG4 is a single-channel, isolation operational amplifier housed in an 8-PDIP package. This component offers a -3dB bandwidth of 50 kHz and a slew rate of 2V/µs, making it suitable for applications requiring precise signal conditioning in noisy environments. Designed for through-hole mounting, it operates with a supply voltage span from 9V to 36V and draws a quiescent current of 5mA. The output current capability is 15mA per channel. This isolation amplifier is commonly utilized in industrial automation, medical equipment, and power supply monitoring systems where galvanic isolation is critical for safety and performance. The device features an input offset voltage of 20 mV and is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm), 8 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply | 5mA |
| Slew Rate | 2V/µs |
| Voltage - Input Offset | 20 mV |
| Supplier Device Package | 8-PDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 15 mA |
| -3db Bandwidth | 50 kHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
