ISO120G-BI

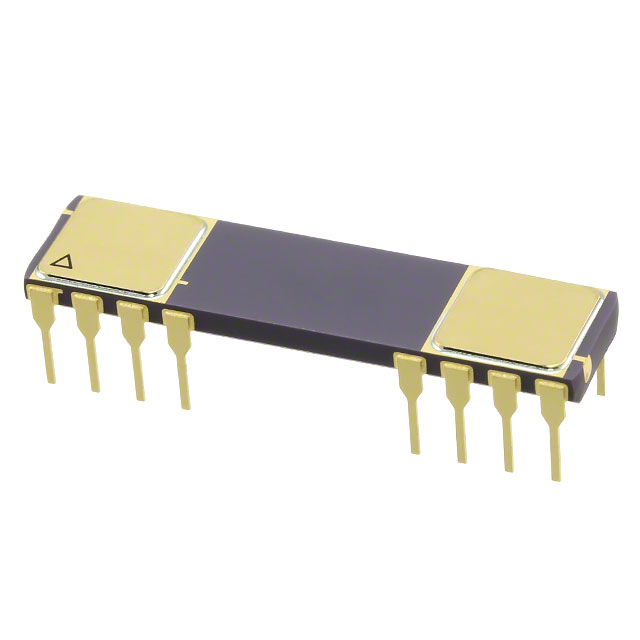

IC OPAMP ISOLATION 1 CIRC 16CDIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments ISO120G-BI is a single-channel isolation amplifier designed for robust performance in demanding applications. This 16-pin CDIP component provides excellent isolation, crucial for applications in industrial automation, medical equipment, and motor control systems where ground loops and voltage transients are a concern. Key specifications include a 60 kHz -3dB bandwidth and a 2 V/µs slew rate, enabling accurate signal conditioning. The device operates from a 9 V to 36 V supply span and draws a typical 4 mA quiescent current. It delivers up to 15 mA output current per channel and features a 10 mV input offset voltage. The through-hole mounting style and 16-CDIP package facilitate straightforward integration into through-hole circuit designs. Operating temperature range is -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-CDIP (0.300"", 7.62mm), 16 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply | 4mA |
| Slew Rate | 2V/µs |
| Voltage - Input Offset | 10 mV |
| Supplier Device Package | 16-CDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 15 mA |
| -3db Bandwidth | 60 kHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
