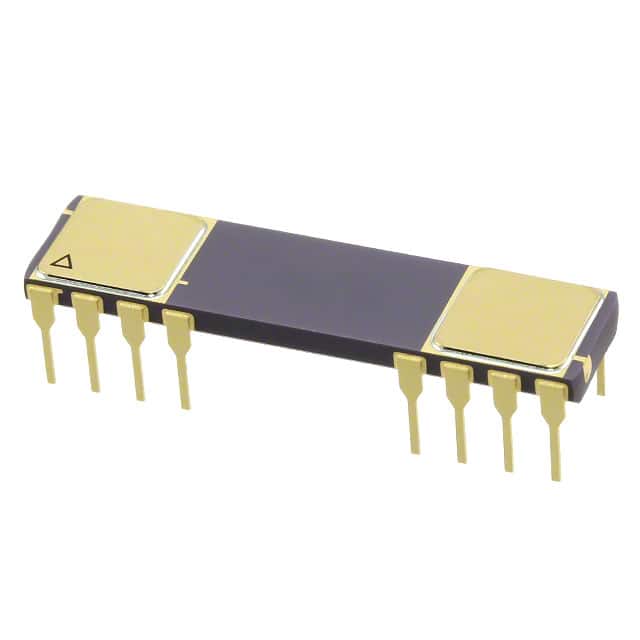

ISO113B
IC OPAMP ISOLATION 1 CIRC 16CDIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments ISO113B is a single-circuit isolation amplifier designed for robust performance in demanding applications. This component offers a -3dB bandwidth of 20 kHz and a slew rate of 1.5V/µs, suitable for signal conditioning in industrial automation, medical equipment, and motor control systems. It operates with a supply voltage span of 20V to 36V and features a typical supply current of 90mA, delivering an output current of 15mA per channel. The 16-CDIP package, with a 0.600" footprint, facilitates through-hole mounting. The ISO113B provides a 20 mV input offset voltage and is specified for operation within a temperature range of -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-CDIP (0.600"", 15.24mm), 16 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply | 90mA |
| Slew Rate | 1.5V/µs |
| Voltage - Input Offset | 20 mV |
| Supplier Device Package | 16-CDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 15 mA |
| -3db Bandwidth | 20 kHz |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 36 V |
