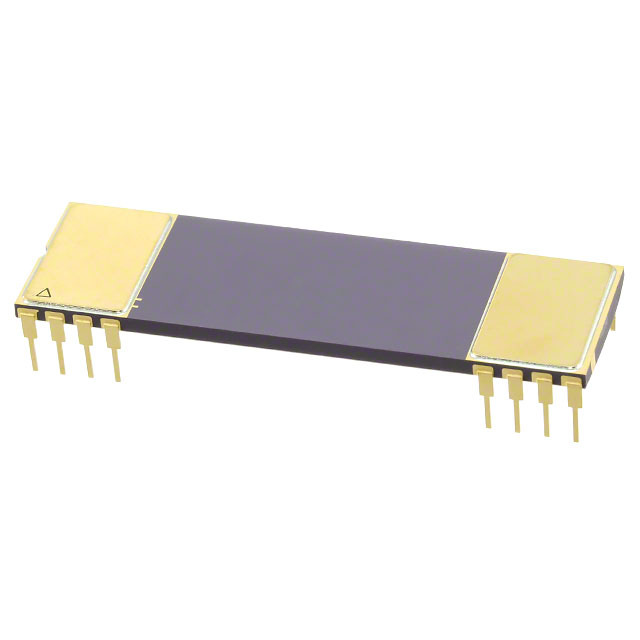

ISO106
IC OPAMP ISOLATION 1 CIRC 16CDIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments ISO106 is a single-channel isolation amplifier housed in a 16-CDIP package. This component offers robust isolation capabilities, crucial for applications requiring high voltage or noise immunity. Key performance specifications include a -3dB bandwidth of 70 kHz and a slew rate of 0.5V/µs. The device operates with a supply voltage span of 20V to 40V and draws a supply current of 25mA. It provides an output current capability of 5mA per channel and features a through-hole mounting type. The operating temperature range is -25°C to 85°C. The ISO106 is suitable for use in demanding industrial and medical equipment where signal integrity and safety are paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-CDIP (0.600"", 15.24mm), 16 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply | 25mA |
| Slew Rate | 0.5V/µs |
| Voltage - Input Offset | 25 mV |
| Supplier Device Package | 16-CDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 5 mA |
| -3db Bandwidth | 70 kHz |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 40 V |
