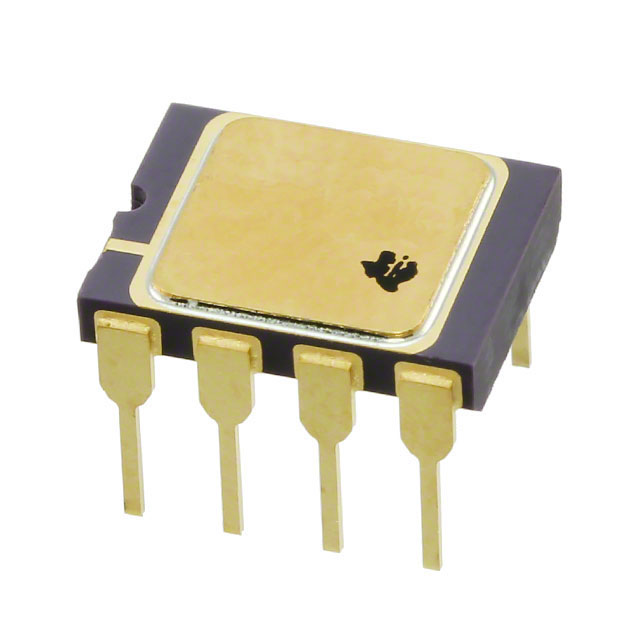

INA333SJD
IC INST AMP 1 CIRCUIT 8CDIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Texas Instruments INA333SJD is a precision, low-power instrumentation amplifier featuring a 1 circuit configuration. This component offers rail-to-rail output and operates over a wide supply voltage span from 1.8 V to 5.5 V. Key performance specifications include a low input bias current of 70 pA, a voltage input offset of 10 µV, and a slew rate of 0.16 V/µs. The 3dB bandwidth is 150 kHz, and the quiescent current is a mere 50 µA. Designed for demanding applications, the INA333SJD is housed in an 8-CDIP (0.300", 7.62mm) window package and supports through-hole mounting. Its robust operating temperature range of -55°C to 210°C makes it suitable for use in industrial, medical, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Output Type | Rail-to-Rail |
| Mounting Type | Through Hole |
| Amplifier Type | Instrumentation |
| Operating Temperature | -55°C ~ 210°C |
| Current - Supply | 50µA |
| Slew Rate | 0.16V/µs |
| Current - Input Bias | 70 pA |
| Voltage - Input Offset | 10 µV |
| Supplier Device Package | 8-CDIP SB |
| Number of Circuits | 1 |
| Current - Output / Channel | 40 mA |
| -3db Bandwidth | 150 kHz |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
Request a Quote
