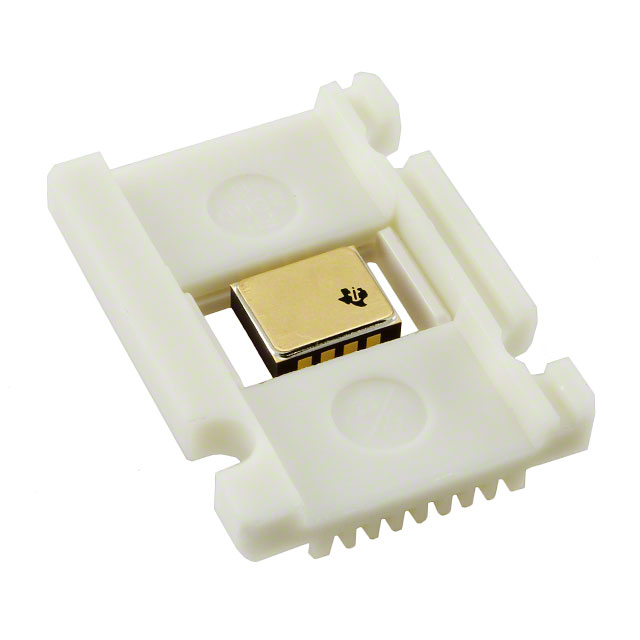

INA333SHKJ
IC INST AMP 1 CIRCUIT 8CFPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Instrumentation Amplifier 1 Circuit Rail-to-Rail 8-CFP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CFlatPack |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -55°C ~ 210°C |
| Current - Supply | 50µA |
| Slew Rate | 0.16V/µs |
| Current - Input Bias | 70 pA |
| Voltage - Input Offset | 10 µV |
| Supplier Device Package | 8-CFP |
| Number of Circuits | 1 |
| Current - Output / Channel | 55 mA |
| -3db Bandwidth | 150 kHz |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
Request a Quote
