INA2181A2IDSQT
IC OPAMPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments INA2181A2IDSQT is a dual-channel, precision current sense amplifier designed for high-side or low-side current monitoring. This AEC-Q100 qualified component offers a wide supply voltage range from 2.7V to 5.5V and features rail-to-rail output for maximum dynamic range. With a -3dB bandwidth of 210 kHz and a slew rate of 2V/µs, it is suitable for applications requiring fast response times. The device boasts a low input bias current of 75 µA and an input offset voltage of 100 µV, ensuring accurate measurements. Packaged in a 10-WSON (2x2) with an exposed pad, this surface-mount amplifier is ideal for use in automotive applications, including battery management systems and electric vehicle power control. The INA2181A2IDSQT draws a quiescent current of 356 µA and operates across an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

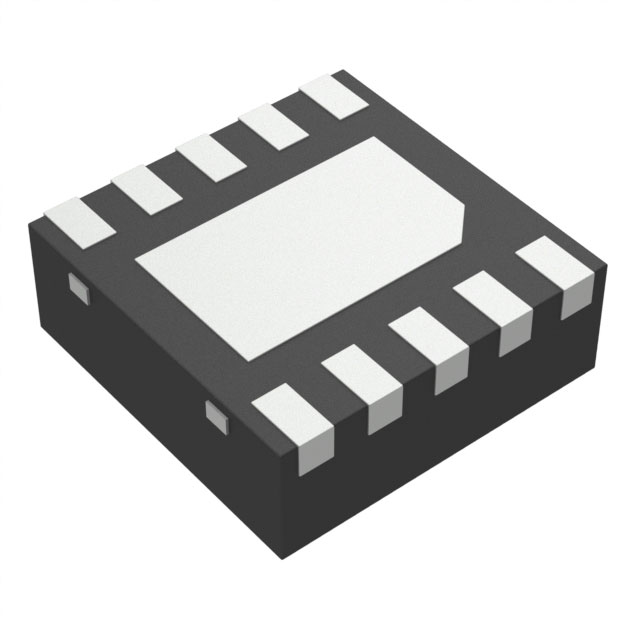

| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Sense |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | 356µA |
| Slew Rate | 2V/µs |
| Current - Input Bias | 75 µA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 10-WSON (2x2) |
| Grade | Automotive |
| Number of Circuits | 2 |
| -3db Bandwidth | 210 kHz |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Qualification | AEC-Q100 |
