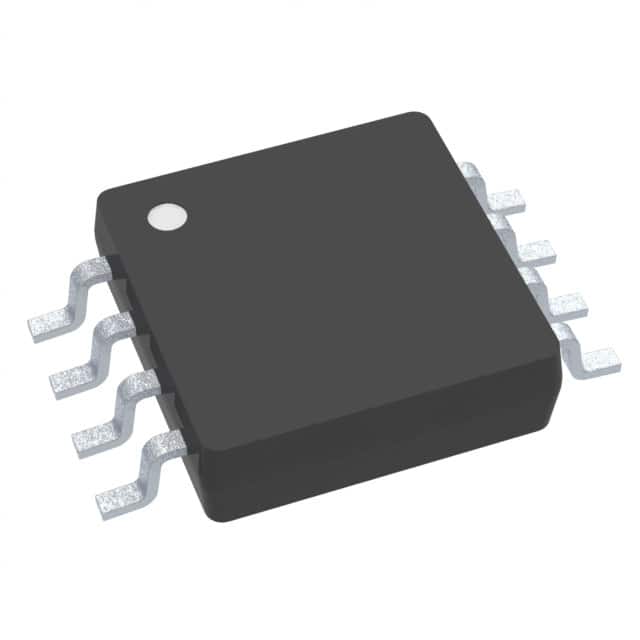

INA159AIDGKT
IC OPAMP DIFF 1 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Texas Instruments INA159AIDGKT is a single-circuit differential amplifier designed for precise signal conditioning. This instrumentation amplifier offers a 1.5 MHz -3dB bandwidth and a 15 V/µs slew rate, enabling accurate amplification of differential signals in demanding applications. With a low input offset voltage of 100 µV and a quiescent current of 1.1 mA, it is well-suited for power-sensitive designs. The INA159AIDGKT is housed in an 8-VSSOP package and supports a wide operating temperature range of -40°C to 125°C, making it robust for industrial, medical, and automotive environments. Its output current capability is 60 mA, and it operates from a supply voltage span of 1.8 V to 5.5 V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1.1mA |
| Slew Rate | 15V/µs |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 1 |
| Current - Output / Channel | 60 mA |
| -3db Bandwidth | 1.5 MHz |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
