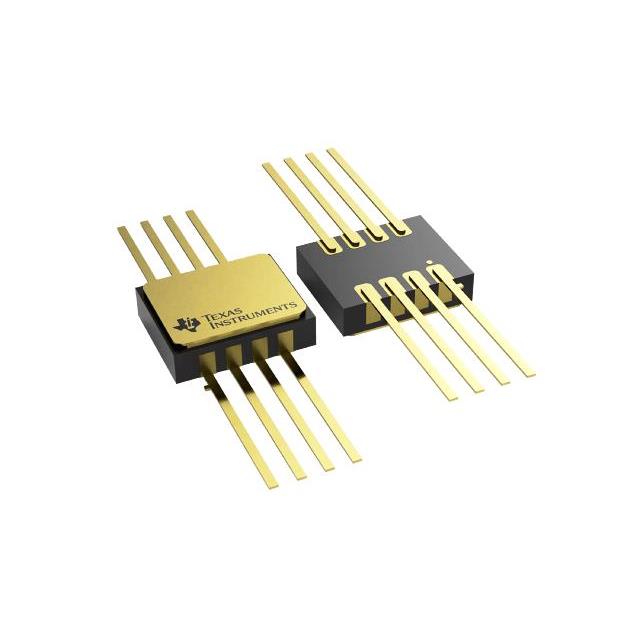

INA129SKGD1
IC INST AMP 1 CIRCUIT 0XCEPTManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments INA129SKGD1 is a precision instrumentation amplifier, featuring a single-circuit configuration. This component is designed for high-accuracy signal acquisition and conditioning. Key specifications include a 1.3 MHz -3dB bandwidth and a 4V/µs slew rate, enabling efficient operation in demanding applications. The INA129SKGD1 exhibits a low input bias current of 2 nA and a minimal input offset voltage of 25 µV, ensuring signal integrity. It operates from a supply voltage span of 4.5 V to 36 V, with a typical quiescent current of 700 µA. The amplifier is housed in a Die package, suitable for surface mount applications. This instrumentation amplifier finds utility across various industries including industrial automation, medical instrumentation, and precision measurement systems. The device is supplied in Tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Die |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 700µA |
| Slew Rate | 4V/µs |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 25 µV |
| Supplier Device Package | 0-XCEPT |
| Number of Circuits | 1 |
| Current - Output / Channel | 15 mA |
| -3db Bandwidth | 1.3 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 36 V |
