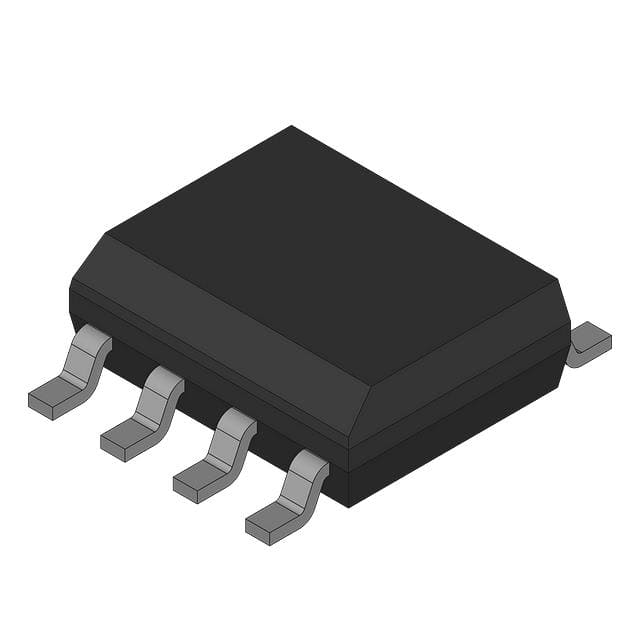

INA106U
IC OPAMP DIFF 1 CIRCUIT 8SOICManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments INA106U is a precision, low-cost, monolithic differential amplifier. This single-circuit device, housed in an 8-SOIC package, offers a high common-mode rejection ratio and low input offset voltage of 50 µV. The INA106U features a 1 MHz -3dB bandwidth and a 3V/µs slew rate, making it suitable for applications requiring accurate signal conditioning. With a supply voltage span from 10V to 36V and a typical quiescent current of 1.5mA, it is an energy-efficient choice. The output current capability is 20 mA. This component finds application in instrumentation, data acquisition systems, and medical equipment. The device is supplied in a tube.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 1.5mA |
| Slew Rate | 3V/µs |
| Voltage - Input Offset | 50 µV |
| Supplier Device Package | 8-SOIC |
| Number of Circuits | 1 |
| Current - Output / Channel | 20 mA |
| -3db Bandwidth | 1 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
