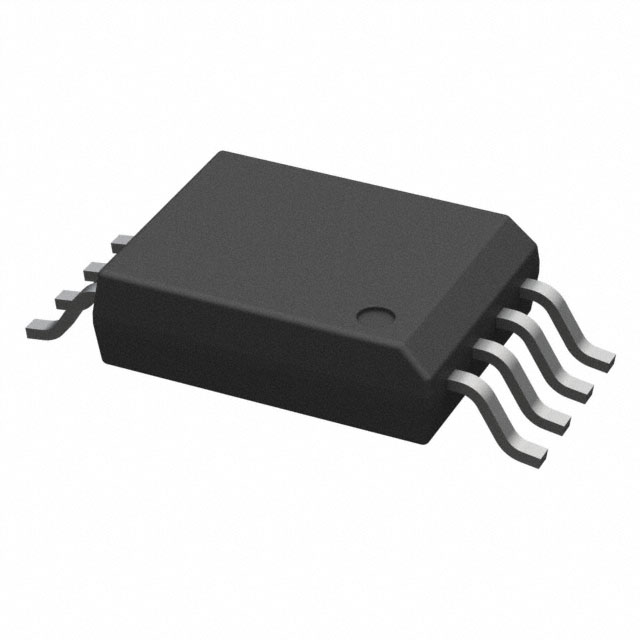

AMC1301QDWVRQ1
IC OPAMP ISOLATION 1 CIRC 8SOICManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments AMC1301QDWVRQ1 is a single-circuit isolation amplifier designed for demanding automotive applications. This component is specified for operation over a temperature range of -40°C to 125°C and meets AEC-Q100 qualification standards. It features a 1 MHz gain bandwidth product and an input bias current of 60 µA. The device operates from a 3V to 5.5V supply span and delivers an output current capability of 13 mA. Its 8-SOIC (0.295", 7.50mm Width) package is suitable for surface mount applications. The AMC1301QDWVRQ1 is commonly utilized in automotive systems requiring robust signal isolation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.295"", 7.50mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 5.9mA |
| Slew Rate | - |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 60 µA |
| Voltage - Input Offset | 50 µV |
| Supplier Device Package | 8-SOIC |
| Grade | Automotive |
| Number of Circuits | 1 |
| Current - Output / Channel | 13 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Qualification | AEC-Q100 |
Request a Quote
