3650HG

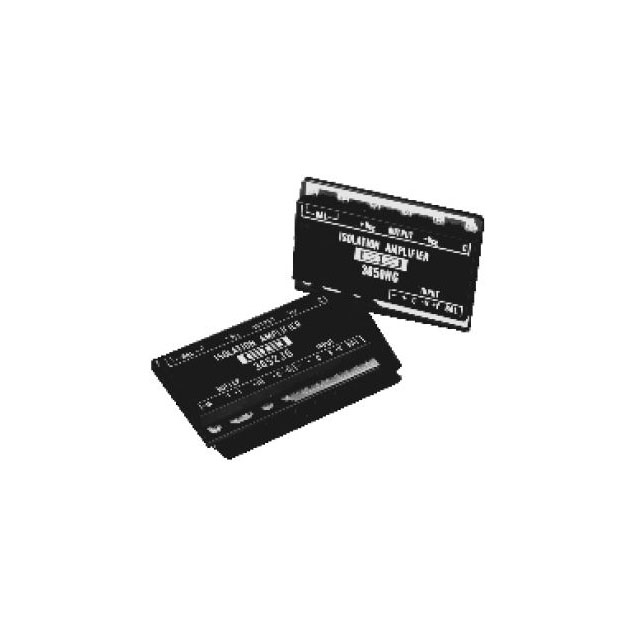

IC OPAMP ISOLATION 1 CIRC 32CDIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments' 3650HG is a single-channel isolation amplifier designed for precision signal conditioning in demanding applications. This component features a 32-CDIP package ideal for through-hole mounting and offers a robust solution for isolating high-voltage circuits from low-voltage control systems. With a -3dB bandwidth of 15 kHz and a slew rate of 1.2V/µs, it is well-suited for applications requiring accurate amplification of slow-moving signals. The 3650HG boasts a low input bias current of 10 nA and an output current capability of 5 mA, with a typical supply current of 2.3 mA. Operating within a temperature range of 0°C to 85°C, this isolation amplifier is commonly found in industrial automation, medical equipment, and power control systems where signal integrity and safety are paramount. The device operates from a supply span of 16 V to 36 V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-CDIP (0.900"", 22.86mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | 0°C ~ 85°C |
| Current - Supply | 2.3mA |
| Slew Rate | 1.2V/µs |
| Current - Input Bias | 10 nA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 32-CDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 5 mA |
| -3db Bandwidth | 15 kHz |
| Voltage - Supply Span (Min) | 16 V |
| Voltage - Supply Span (Max) | 36 V |
