TCA7408ZSZR
IC XPNDR 400KHZ I2C SMBUS 16UCSPManufacturer: Texas Instruments
Categories: I/O Expanders
Quality Control: Learn More
Texas Instruments TCA7408ZSZR is an 8-bit I/O expander designed for systems requiring additional digital input/output capabilities. This device communicates via the I2C and SMBus interfaces, operating at clock frequencies up to 400 kHz. It features a push-pull output type and provides an interrupt output, with a Power-On Reset (POR) circuit for reliable initialization. The TCA7408ZSZR supports a supply voltage range of 1.65V to 3.6V and offers 10mA current for output source/sink. Its 16-UCSP (2x2) package, supplied on tape and reel, makes it suitable for space-constrained applications. This component is commonly utilized in consumer electronics, industrial automation, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tape & Reel (TR) |

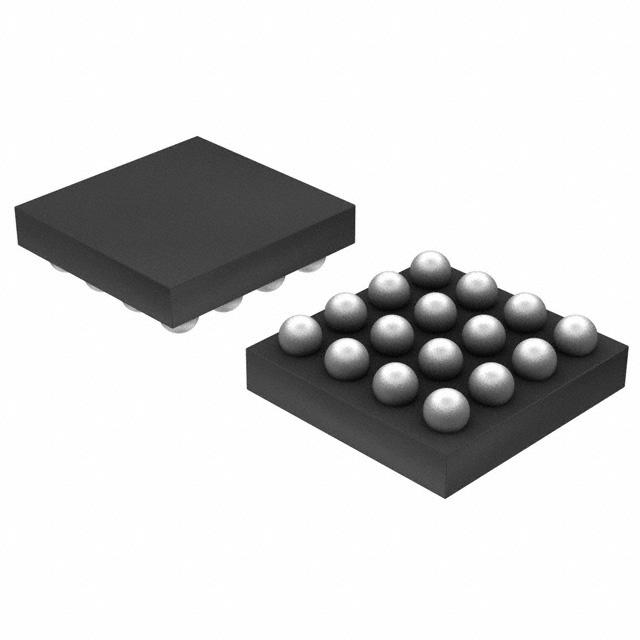

| Package / Case | 16-UFBGA, CSPBGA |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C, SMBus |
| Number of I/O | 8 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 3.6V |
| Clock Frequency | 400 kHz |
| Interrupt Output | Yes |
| Supplier Device Package | 16-UCSP (2x2) |
| Current - Output Source/Sink | 10mA |
| Programmable | Not Verified |
