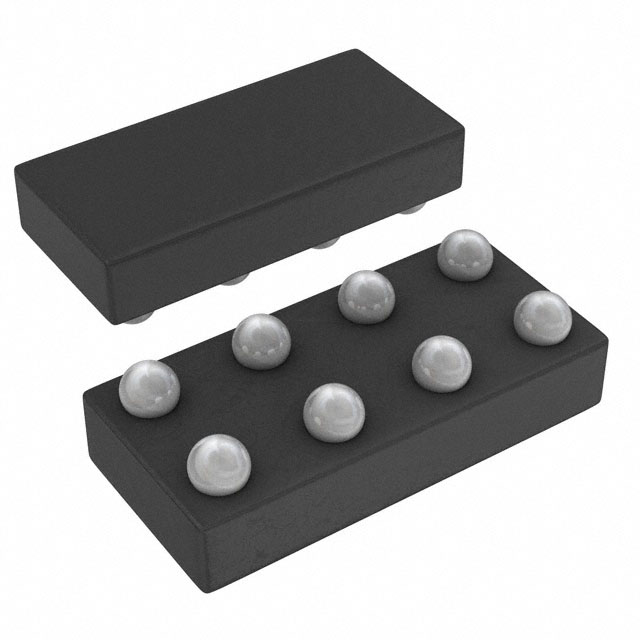

PCA9536YZPR
IC XPNDR 400KHZ I2C SMBUS 8DSBGAManufacturer: Texas Instruments
Categories: I/O Expanders
Quality Control: Learn More
Texas Instruments PCA9536YZPR is an I/O expander featuring 4 configurable I/O pins supporting I2C and SMBus interfaces up to 400 kHz. This device operates within a supply voltage range of 2.3V to 5.5V. Key features include a Power-On Reset (POR) circuit. The PCA9536YZPR is provided in an 8-DSBGA package with dimensions of 1.9x0.9, suitable for surface mounting. It is delivered on tape and reel. This component finds application in consumer electronics and industrial automation. The output type is push-pull, with source/sink current capabilities of 10mA and 25mA respectively. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFBGA, DSBGA |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C, SMBus |
| Number of I/O | 4 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 5.5V |
| Clock Frequency | 400 kHz |
| Interrupt Output | No |
| Supplier Device Package | 8-DSBGA (1.9x0.9) |
| Current - Output Source/Sink | 10mA, 25mA |
| Programmable | Not Verified |
