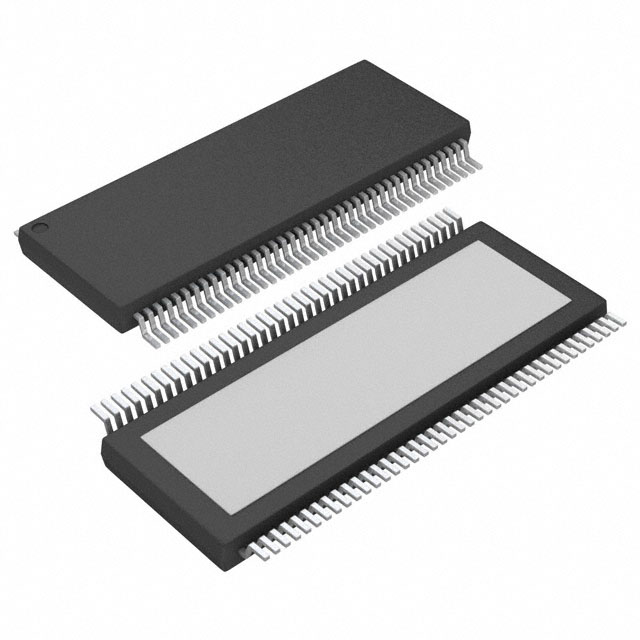

TPS2343DDPR
IC HOT PLUG CTRLR PCI 80HTSSOPManufacturer: Texas Instruments
Categories: Hot Swap Controllers
Quality Control: Learn More
The Texas Instruments TPS2343DDPR is a versatile 12-channel hot plug controller designed for PCI and PCI-X applications. This device facilitates safe insertion and removal of components from live backplanes, featuring individual channel control with programmable current limiting and slew rate capabilities. It integrates both internal switches, offering flexibility in power management. The TPS2343DDPR supports multiple supply voltages including 1.5V, 3.3V, 5V, and ±12V, with output current capabilities of 100mA, 375mA, and 1.1A across its channels. Key features include latched fault protection and thermal limiting for robust operation. Packaged in an 80-HTSSOP on tape and reel (TR), this component is suitable for surface mount applications operating within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Latched Fault, Thermal Limit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-PowerTFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Type | Hot Plug Controller |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V, 3.3V, 5V, ±12V |
| Applications | PCI, PCI-X |
| Internal Switch(s) | Both |
| Current - Output (Max) | 100mA, 375mA, 1.1A |
| Supplier Device Package | 80-HTSSOP |
| Programmable Features | Current Limit, Slew Rate |
| Number of Channels | 12 |
