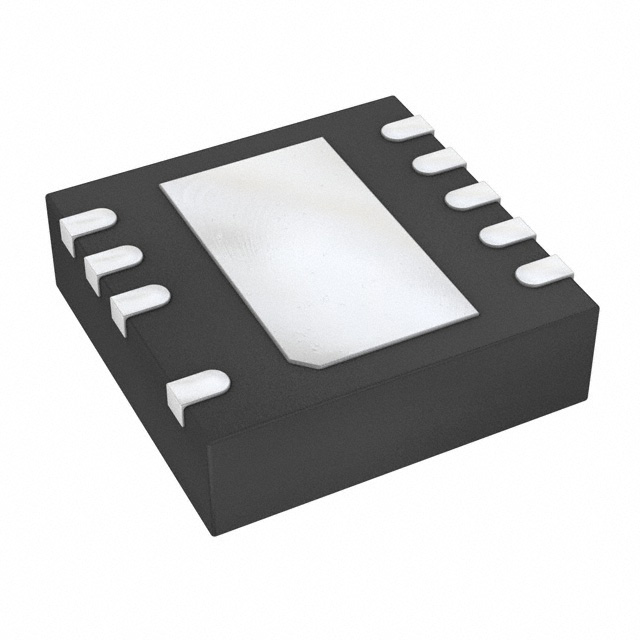

UCC27201ADRCT
IC GATE DRVR HALF-BRIDGE 9VSONManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
Texas Instruments UCC27201ADRCT is a high-speed, half-bridge gate driver designed for driving N-channel MOSFETs. This component features independent high-side and low-side drivers, capable of delivering 3A peak source and sink current. The UCC27201ADRCT operates with a supply voltage range of 8V to 17V and supports bootstrap configurations up to 120V, enabling efficient high-side drive. Its 9-VSON (3x3) package with an exposed pad facilitates effective thermal management, crucial for demanding applications. Typical rise and fall times are 8ns and 7ns respectively, ensuring fast switching transitions. The non-inverting input logic levels are 0.8V for VIL and 2.5V for VIH. This device is commonly employed in power supply, automotive, and industrial motor control applications where efficient switching and robust gate drive are paramount. The UCC27201ADRCT is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad, 9 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Voltage - Supply | 8V ~ 17V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Supplier Device Package | 9-VSON (3x3) |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Programmable | Not Verified |
