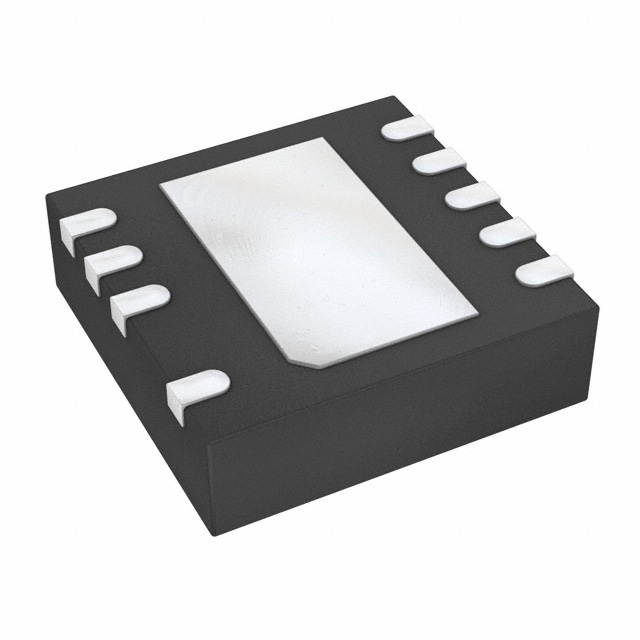

UCC27201ADRCR
IC GATE DRVR HALF-BRIDGE 9VSONManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting 9-VSON (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad, 9 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Voltage - Supply | 8V ~ 17V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Supplier Device Package | 9-VSON (3x3) |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

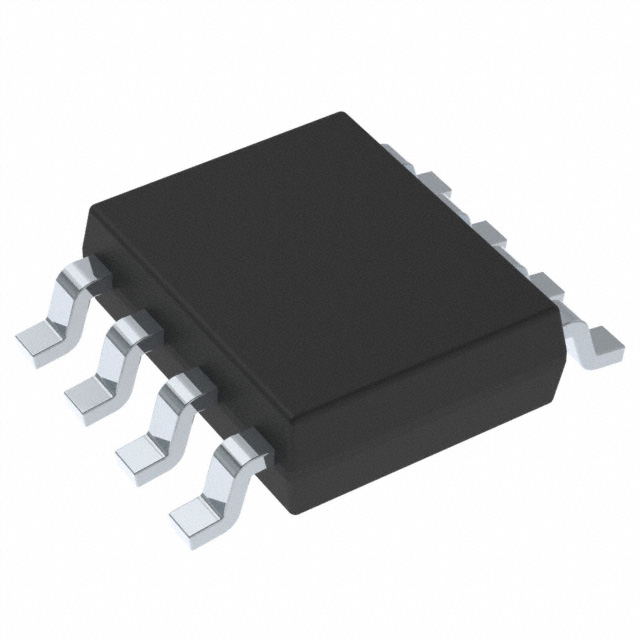

UCC27211AQDDARQ1
