TPIC46L01DB

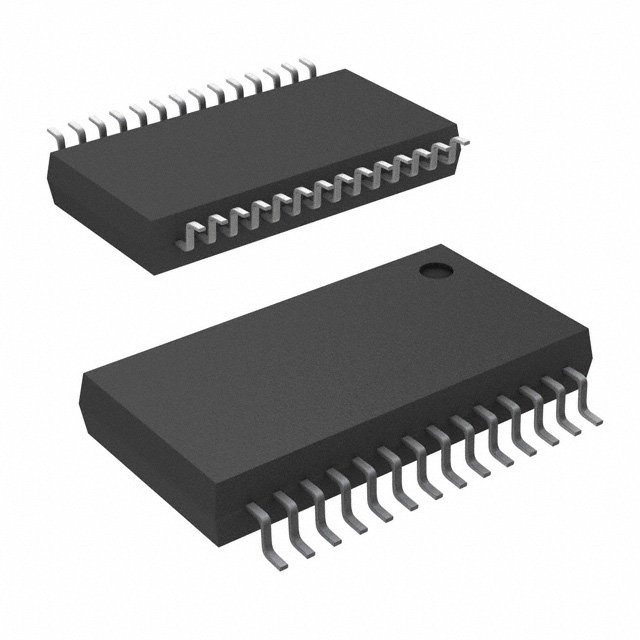

IC GATE DRVR LOW-SIDE 28SSOPManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
Texas Instruments TPIC46L01DB is a low-side gate driver IC featuring six independent channels. This non-inverting driver is designed for N-Channel MOSFETs and operates with a supply voltage range of 4.5V to 5.5V. It offers typical rise and fall times of 3.5µs and 3µs respectively, with peak output current capabilities of 1.2mA for both source and sink. The TPIC46L01DB is housed in a 28-SSOP package, suitable for surface mount applications. Its robust design makes it applicable in automotive and industrial control systems. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| Supplier Device Package | 28-SSOP |
| Rise / Fall Time (Typ) | 3.5µs, 3µs |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1.2mA, 1.2mA |
| Programmable | Not Verified |
