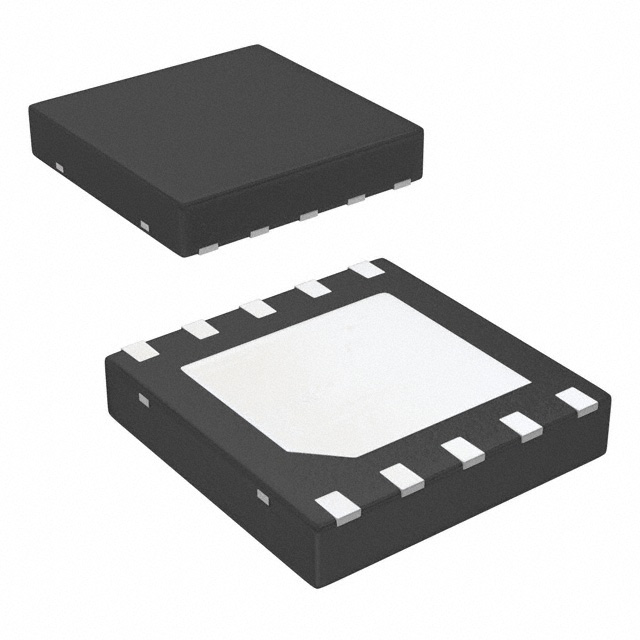

SM74104SD/NOPB
IC GATE DRVR HALF-BRIDGE 10WSONManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
The Texas Instruments SM74104SD-NOPB is a half-bridge gate driver IC designed for efficient control of N-channel MOSFETs. This non-inverting device delivers a peak output current of 1.6A sourcing and sinking, facilitating rapid switching transitions with typical rise and fall times of 600ns. Operating within a supply voltage range of 9V to 14V, it supports a high-side bootstrap voltage up to 118V. The SM74104SD-NOPB features two independent drivers and is housed in a compact 10-WSON (4x4) package with an exposed pad for enhanced thermal performance. It is suitable for applications requiring robust half-bridge configurations, including power supply units and motor control systems across industrial and automotive sectors. The device operates reliably within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 9V ~ 14V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Supplier Device Package | 10-WSON (4x4) |
| Rise / Fall Time (Typ) | 600ns, 600ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1.6A, 1.6A |
| Programmable | Not Verified |
