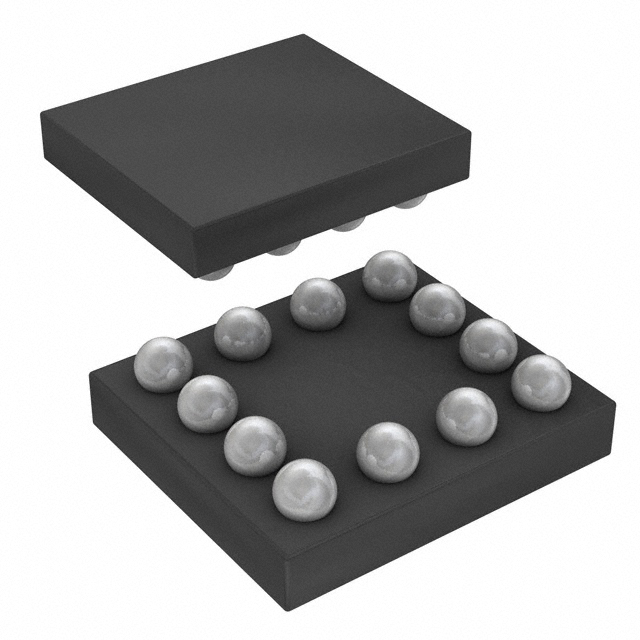

LMG1205YFXT
IC GATE DRVR HALF-BRIDGE 12DSBGAManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC TTL 12-DSBGA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA, DSBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | TTL |
| High Side Voltage - Max (Bootstrap) | 100 V |
| Supplier Device Package | 12-DSBGA |
| Rise / Fall Time (Typ) | 7ns, 3.5ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.76V, 1.89V |
| Current - Peak Output (Source, Sink) | 1.2A, 5A |
| Programmable | Not Verified |
