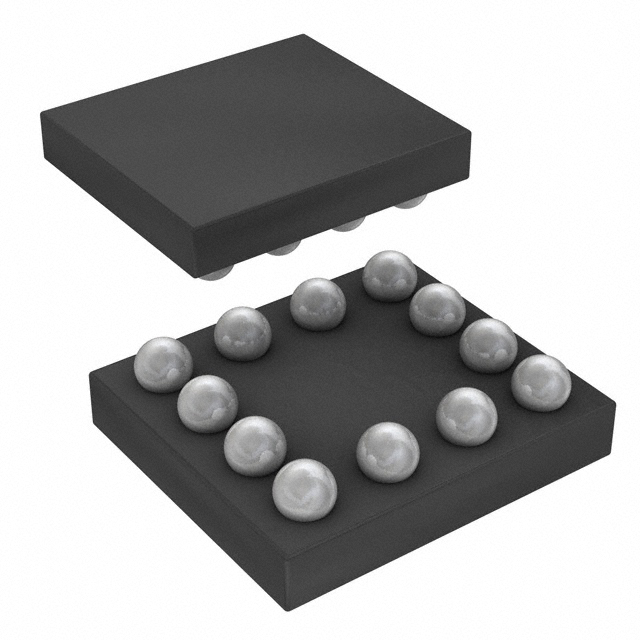

LM5113TMX/NOPB
IC GATE DRVR HALF-BRIDGE 12USMDManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
Texas Instruments LM5113TMX-NOPB is a high-performance, non-inverting half-bridge gate driver. This component features independent high-side and low-side drivers, each capable of sourcing 1.2A and sinking 5A peak output current, facilitating rapid switching of N-channel MOSFETs. The device supports a bootstrap voltage up to 107V, enabling operation with high-side voltage rails. With typical rise and fall times of 7ns and 1.5ns respectively, it is well-suited for applications demanding efficient power conversion. The LM5113TMX-NOPB operates from a supply voltage of 4.5V to 5.5V and is specified for an operating temperature range of -40°C to 125°C (TJ). Packaged in a compact 12-DSBGA (12-WFBGA), this Texas Instruments gate driver is commonly deployed in power supply, motor control, and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 107 V |
| Supplier Device Package | 12-DSBGA |
| Rise / Fall Time (Typ) | 7ns, 1.5ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.76V, 1.89V |
| Current - Peak Output (Source, Sink) | 1.2A, 5A |
| Programmable | Not Verified |
