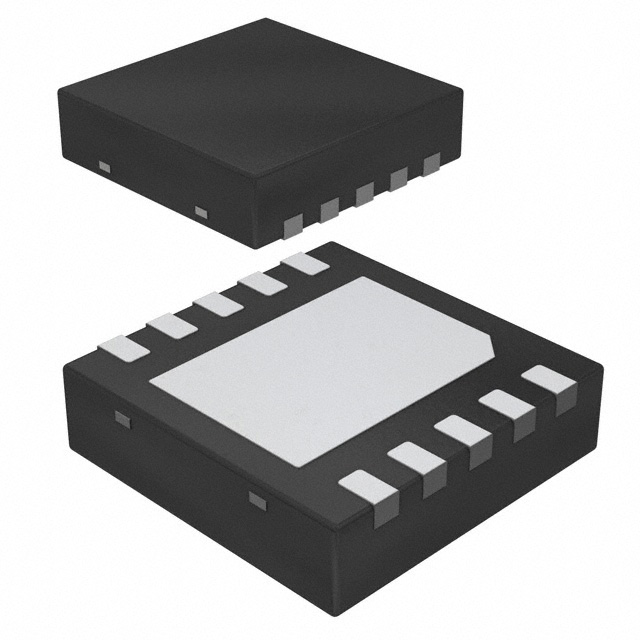

LM5101BSD/NOPB
IC GATE DRVR HALF-BRIDGE 10WSONManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
Texas Instruments LM5101BSD-NOPB is a half-bridge gate driver IC designed for driving N-channel MOSFETs. This component features independent high and low side drivers, with peak output current capabilities of 2A source and 2A sink. The non-inverting input simplifies control logic. Operating within a supply voltage range of 9V to 14V, the LM5101BSD-NOPB supports bootstrap operation up to 118V for the high-side driver. It is housed in a 10-WSON (4x4) package with an exposed pad for enhanced thermal management. Typical rise and fall times are 570ns and 430ns, respectively. This device is suitable for applications in power conversion, motor control, and industrial power systems. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 9V ~ 14V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Supplier Device Package | 10-WSON (4x4) |
| Rise / Fall Time (Typ) | 570ns, 430ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 2.3V, - |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
