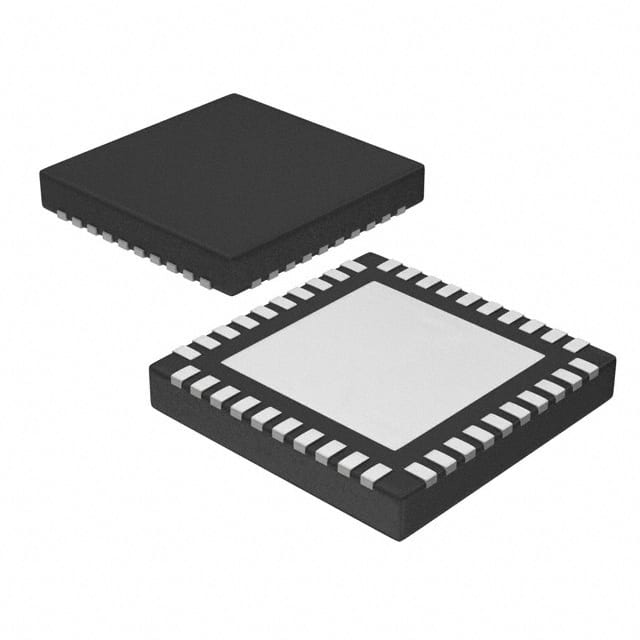

DRV8304HRHAT
IC GATE DRVR HI/LOW SIDE 40VQFNManufacturer: Texas Instruments
Categories: Gate Drivers
Quality Control: Learn More
High-Side or Low-Side Gate Driver IC Non-Inverting 40-VQFN (6x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 6V ~ 38V |
| Input Type | Non-Inverting |
| Supplier Device Package | 40-VQFN (6x6) |
| Rise / Fall Time (Typ) | 300ns, 150ns |
| Channel Type | 3-Phase |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 3 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 1.5V |
| Current - Peak Output (Source, Sink) | 150mA, 300mA |
| Programmable | Not Verified |
