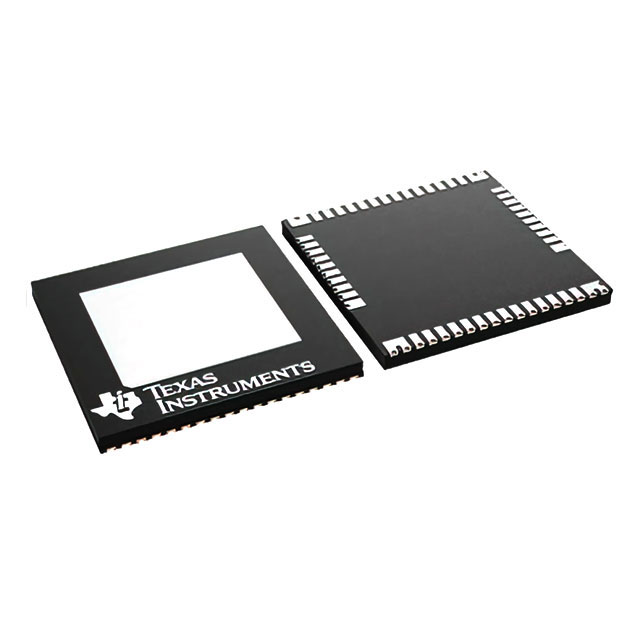

LMG3522R030RQSR
IC LOW SIDE 38A 52VQFNManufacturer: Texas Instruments
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Low Side Driver DC Motors, General Purpose NMOS 52-VQFN (12x12)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Low Side |
| Voltage - Supply | 7.5V ~ 18V |
| Rds On (Typ) | 26mOhm |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 38A |
| Current - Peak Output | - |
| Technology | NMOS |
| Voltage - Load | 650V |
| Supplier Device Package | 52-VQFN (12x12) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
