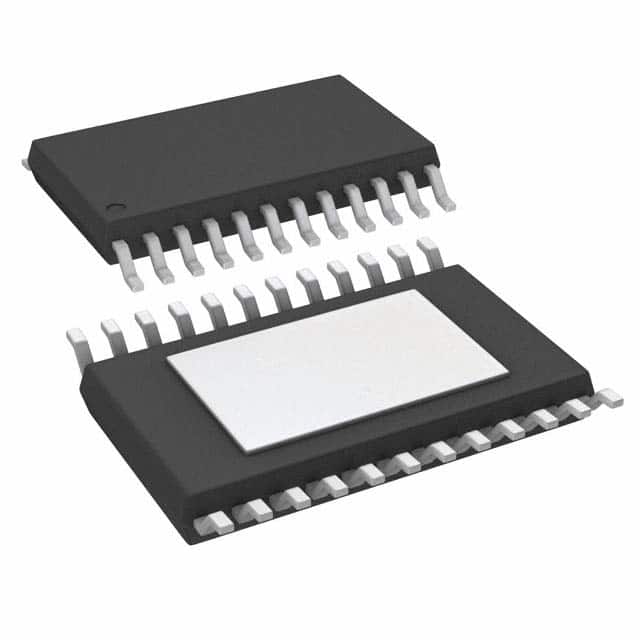

DRV8908QPWPRQ1
IC HALF BRIDGE DRVR 6A 24HTSSOPManufacturer: Texas Instruments
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (8) Driver DC Motors, General Purpose MOSFET (Metal Oxide) 24-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Charge Pump, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerTSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM, SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (8) |
| Voltage - Supply | 3V ~ 5.5V |
| Rds On (Typ) | 750mOhm LS, 750mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 6A |
| Current - Peak Output | - |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Load | 4.5V ~ 32V |
| Supplier Device Package | 24-HTSSOP |
| Fault Protection | Over Current, Over Voltage, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
