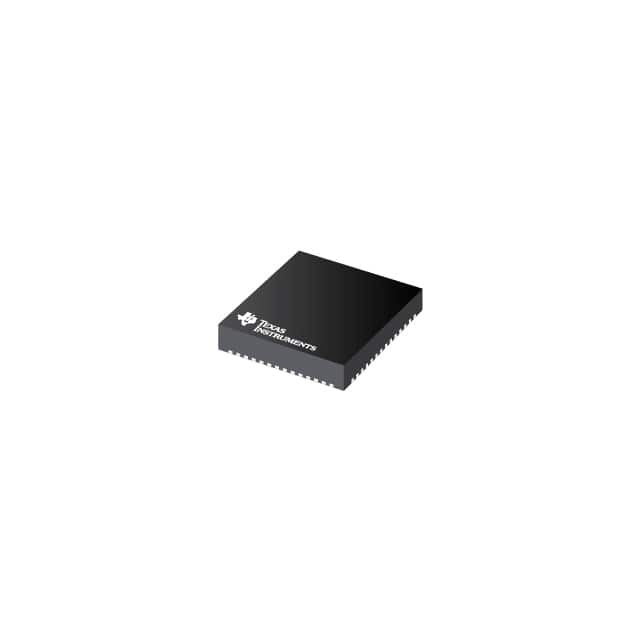

DRV8718SQRVJRQ1
IC HALF BRIDGE DRVR 62MA 56VQFNManufacturer: Texas Instruments
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver DC Motors, General Purpose Power MOSFET 56-VQFN (8x8)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Charge Pump |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Interface | Logic, PWM, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 3V ~ 5.5V |
| Rds On (Typ) | 4mOhm |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 62mA |
| Current - Peak Output | 62mA |
| Technology | Power MOSFET |
| Voltage - Load | 3V ~ 5.5V |
| Supplier Device Package | 56-VQFN (8x8) |
| Fault Protection | Over Current, Over Voltage, Shoot-Through |
| Load Type | Capacitive and Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
