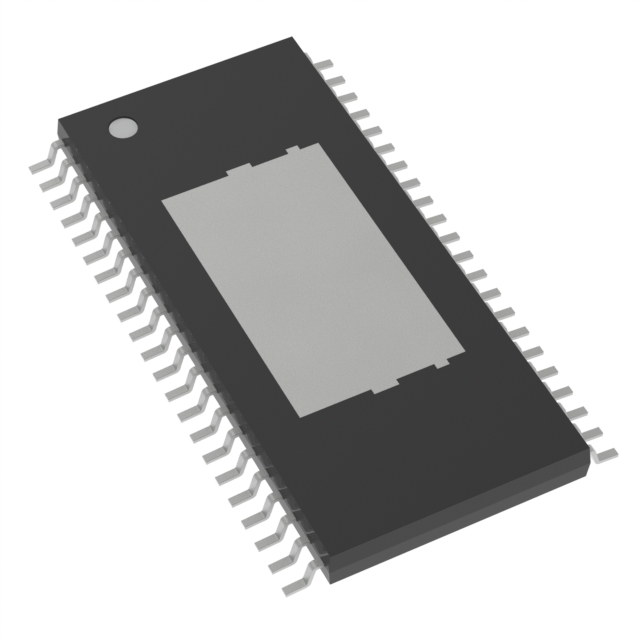

DRV8332HDDV
IC HALF BRIDGE DRVR 5A 44HTSSOPManufacturer: Texas Instruments
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET 44-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Status Flag |
| Packaging | Tube |
| Package / Case | 44-PowerTSSOP (0.244"", 6.20mm Width) |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 10.8V ~ 13.2V |
| Rds On (Typ) | 260mOhm LS, 260mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 5A |
| Current - Peak Output | 7A |
| Technology | Power MOSFET |
| Voltage - Load | 0V ~ 52.5V |
| Supplier Device Package | 44-HTSSOP |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive |
