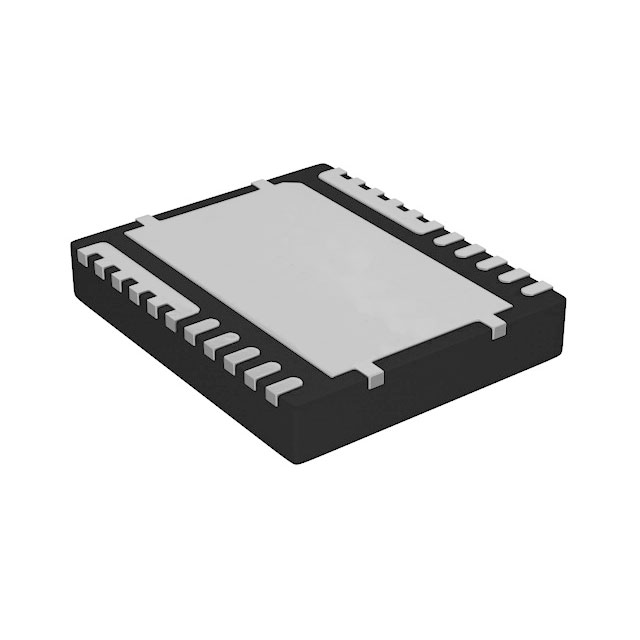

CSD95491Q5MCT
IC HALF BRIDGE DRIVER 60A 12VSONManufacturer: Texas Instruments
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Texas Instruments NexFET CSD95491Q5MCT is a half-bridge driver featuring a 60A output current capability with a 90A peak output. This device integrates a bootstrap circuit and offers PWM interface for control. Designed for synchronous buck converters, it utilizes Power MOSFET technology and is housed in a 12-VSON-CLIP (5x6) package, suitable for surface mounting. The half-bridge driver includes shoot-through fault protection, ensuring robust operation. Operating voltage for the load ranges from 4.5V to 16V, with a supply voltage requirement of 4.5V to 5.5V. This component is engineered for applications demanding efficient power conversion, including automotive and industrial power supply systems. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-PowerTFDFN |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 16V |
| Supplier Device Package | 12-VSON-CLIP (5x6) |
| Fault Protection | Shoot-Through |
| Load Type | Inductive, Capacitive |
