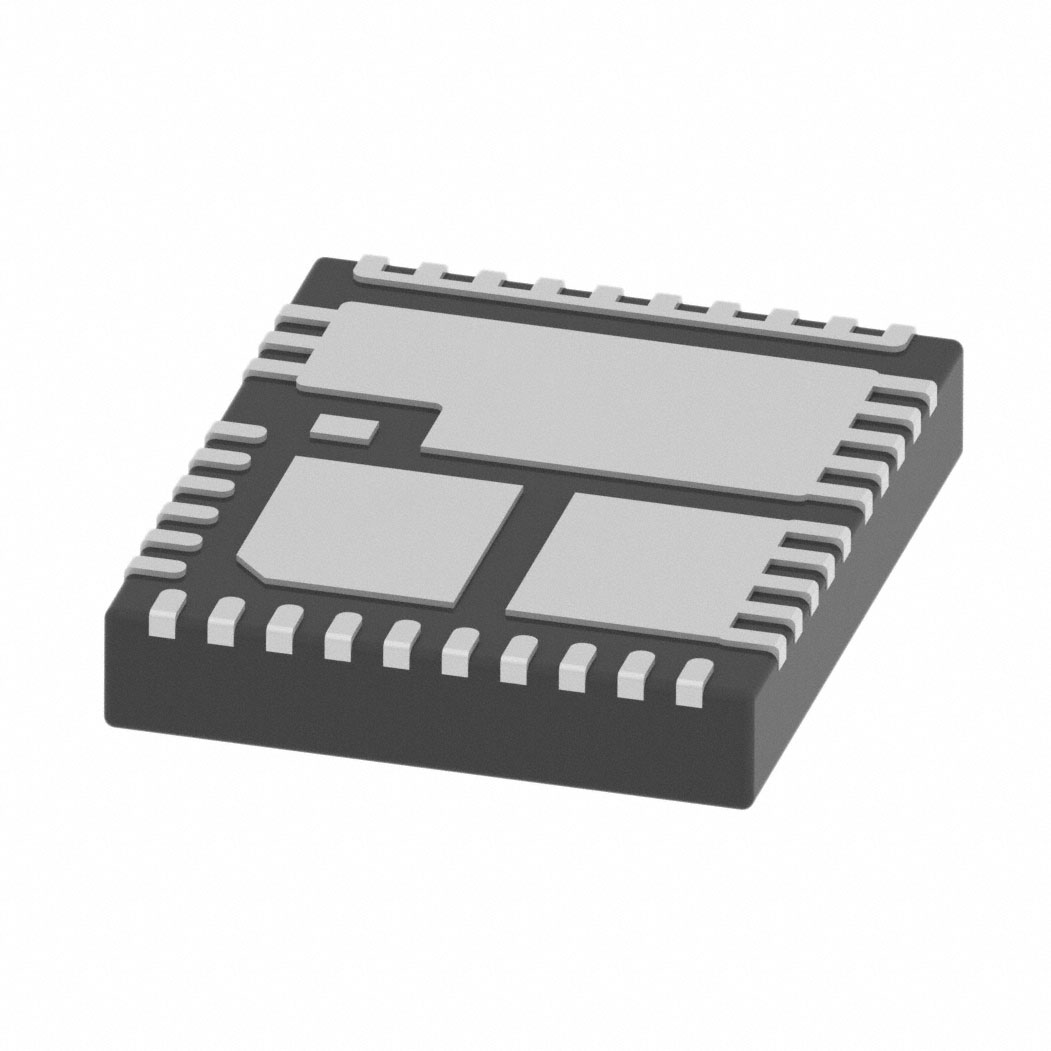

CSD95481RWJ
IC HALF BRIDGE DRIVER 60A 41VQFNManufacturer: Texas Instruments
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Texas Instruments NexFET™ CSD95481RWJ is a half-bridge synchronous buck converter driver. This device integrates a high-side and low-side MOSFET driver with integrated bootstrap circuitry, simplifying design for high-frequency power conversion. It offers robust shoot-through protection and is designed for inductive and capacitive loads. The CSD95481RWJ supports PWM interfaces and operates from a 4.5V to 5.5V supply voltage, driving loads between 4.5V and 16V. With a typical output current of 60A and peak output of 90A, this component is suitable for applications in automotive, industrial power supplies, and high-performance computing. The device is packaged in a 41-VQFN-CLIP (5x6) and supplied on tape and reel. Operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 41-PowerTFQFN |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 16V |
| Supplier Device Package | 41-VQFN-CLIP (5x6) |
| Fault Protection | Shoot-Through |
| Load Type | Inductive, Capacitive |
