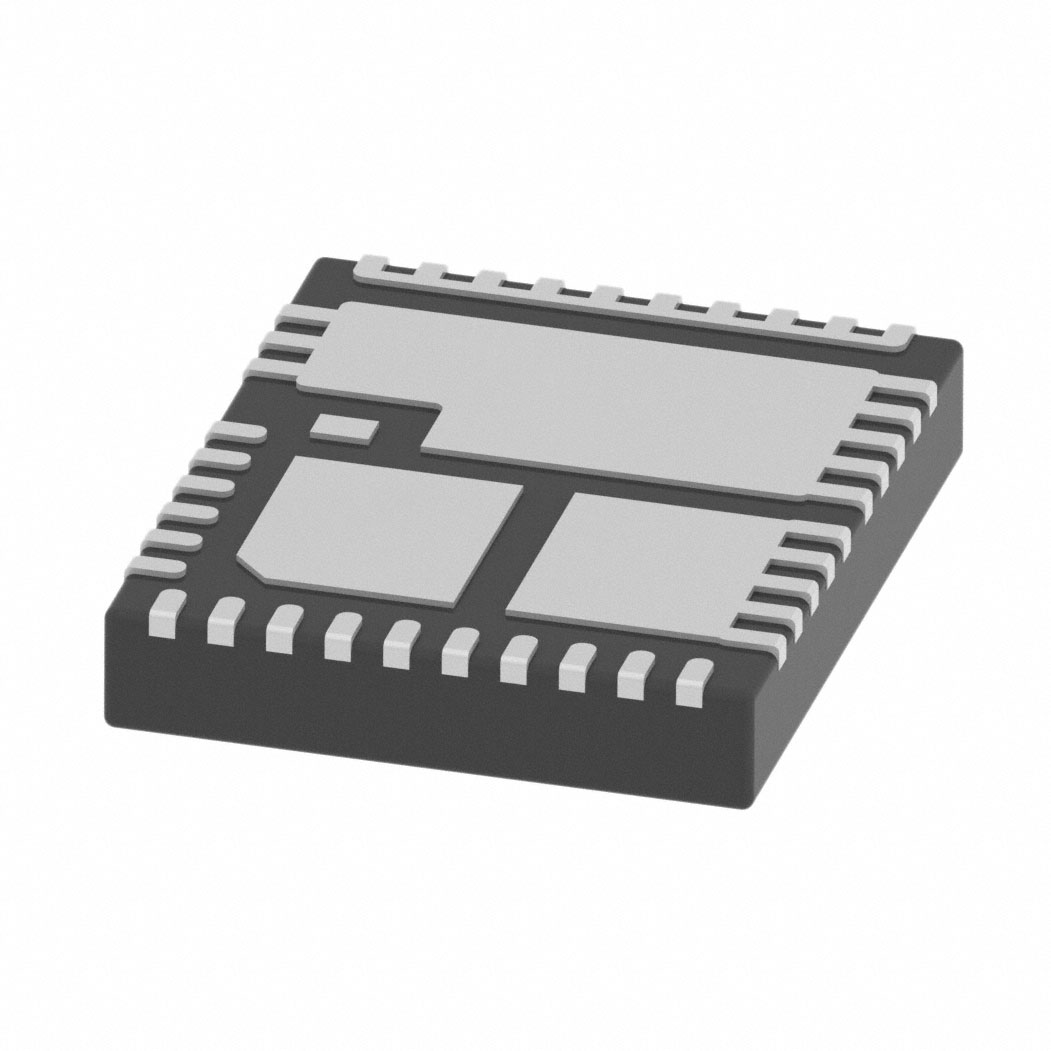

CSD95480RWJT

IC HALF BRIDGE DRIVER 70A 41VQFN

Manufacturer: Texas Instruments

Categories: Full Half-Bridge (H Bridge) Drivers

Quality Control: Learn More

Half Bridge Driver Synchronous Buck Converters Power MOSFET 41-VQFN-CLIP (5x6)

Additional Information

Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Download Free CAD Model:Link image
Technical Details:
FeaturesBootstrap Circuit
PackagingTape & Reel (TR)
Package / Case41-PowerTFQFN
Mounting TypeSurface Mount
InterfacePWM
Operating Temperature-40°C ~ 125°C (TJ)
Output ConfigurationHalf Bridge
Voltage - Supply4.5V ~ 5.5V
Rds On (Typ)-
ApplicationsSynchronous Buck Converters
Current - Output / Channel70A
Current - Peak Output90A
TechnologyPower MOSFET
Voltage - Load4.5V ~ 16V
Supplier Device Package41-VQFN-CLIP (5x6)
Fault ProtectionShoot-Through
Load TypeInductive, Capacitive
