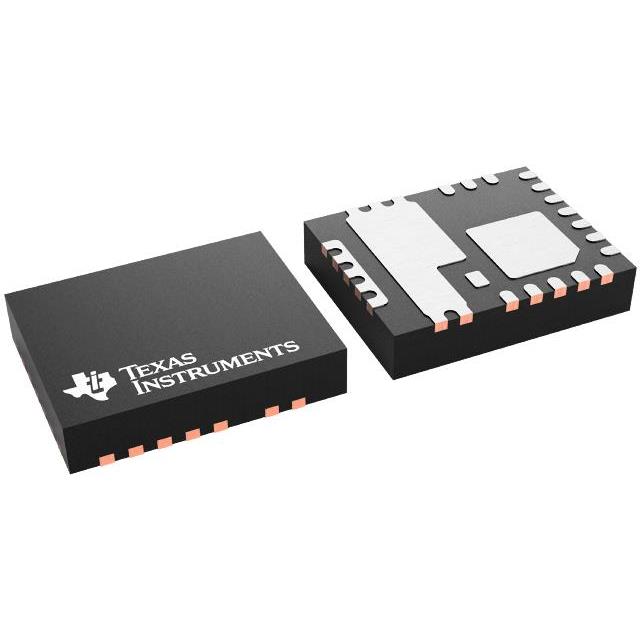

productimage

CSD95420RCB

PROTOTYPE

Manufacturer: Texas Instruments

Categories: Full Half-Bridge (H Bridge) Drivers

Quality Control: Learn More

Half Bridge Driver Synchronous Buck Converters Power MOSFET 27-QFN (4x5)

Additional Information

Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Bulk
Download Free CAD Model:Link image
Technical Details:
FeaturesBootstrap Circuit
PackagingBulk
Package / Case27-PowerTFQFN
Mounting TypeSurface Mount
InterfacePWM
Operating Temperature-40°C ~ 125°C (TJ)
Output ConfigurationHalf Bridge
Voltage - Supply4.5V ~ 5.5V
Rds On (Typ)-
ApplicationsSynchronous Buck Converters
Current - Output / Channel25A
Current - Peak Output50A
TechnologyPower MOSFET
Voltage - Load4.5V ~ 14.5V
Supplier Device Package27-QFN (4x5)
Fault ProtectionShoot-Through
Load TypeInductive, Capacitive
