TMS28F800EB70CDCDL
Flash, 1MX8, 100ns, PDSO48Manufacturer: Texas Instruments
Categories: Flash Memories
Quality Control: Learn More

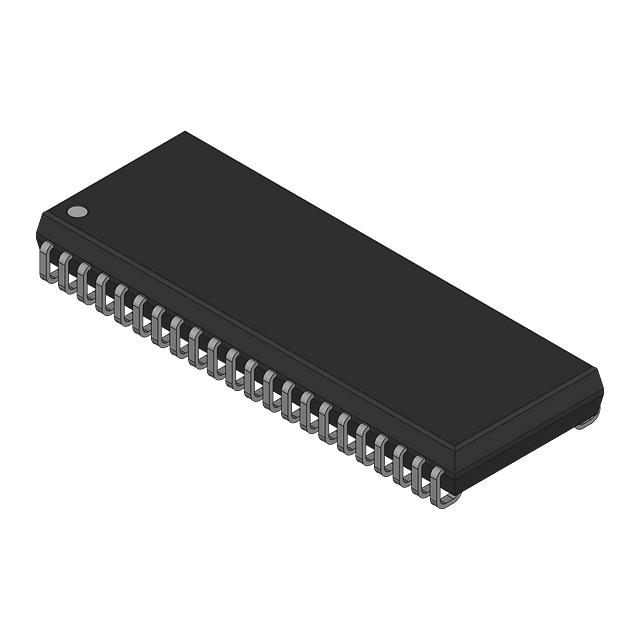

Texas Instruments TMS28F800EB70CDCDL is an 8-Mbit asynchronous Flash memory organized as 1M x 8 bits. This NOR Flash memory features a fast 100ns access time and operates from a supply voltage range of 2.7V to 3.6V. The component is configurable as 512K x 16 bits, with user-selectable 5V VCC and a bottom boot block. It utilizes CMOS technology and is supplied in a 48-lead TSOP package (JESD-30 Code R-PDSO-G48) suitable for surface mounting. Applications for this memory component are found in industrial automation, automotive systems, and consumer electronics. The TMS28F800 series offers robust performance for embedded systems requiring reliable, non-volatile data storage.
Additional Information
Series: TMS28F800RoHS Status: Manufacturer Lead Time: Product Status: DiscontinuedPackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Length | 18.4000 |
| Type | NOR TYPE |
| Width | 12.0000 |
| Technology | CMOS |
| Access_Time_Max | 100.0000000000000000 |
| Additional_Feature | CONFG AS 512K X 16; USER SELECTABLE 5V VCC; BOTTOM BOOT BLOCK |
| Boot_Block | Bottom |
| JESD_30_Code | R-PDSO-G48 |
| Memory_Density | 8388608.0000000000000000 |
| Memory_IC_Type | FLASH |
| Memory_Organization | 1MX8 |
| Memory_Width | 8 |
| Number_of_Functions | 1 |
| Number_of_Terminals | 48 |
| Number_of_Words | 1048576.0000000000000000 |
| Number_of_Words_Code | 1M |
| Operating_Mode | Asynchronous |
| Operating_Temperature_Max | 70.0 |
| Operating_Temperature_Min | 0.0 |
| Package_Body_Material | PLASTIC/EPOXY |
| Package_Code | TSOP1 |
| Package_Shape | Rectangular |
| Package_Style | SMALL OUTLINE, THIN PROFILE |
| Parallel_Serial | Parallel |
| Programming_Voltage | 3 |
| Seated_Height_Max | 1.2000 |
| Supply_Current_Max | 60.000000000000000 |
| Supply_Voltage_Max | 3.60000 |
| Supply_Voltage_Min | 2.70000 |
| Supply_Voltage_Nom | 3 |
| Surface_Mount | Yes |
| Terminal_Form | Gull Wing |
| Terminal_Pitch | 0.500 |
| Terminal_Position | Dual |
