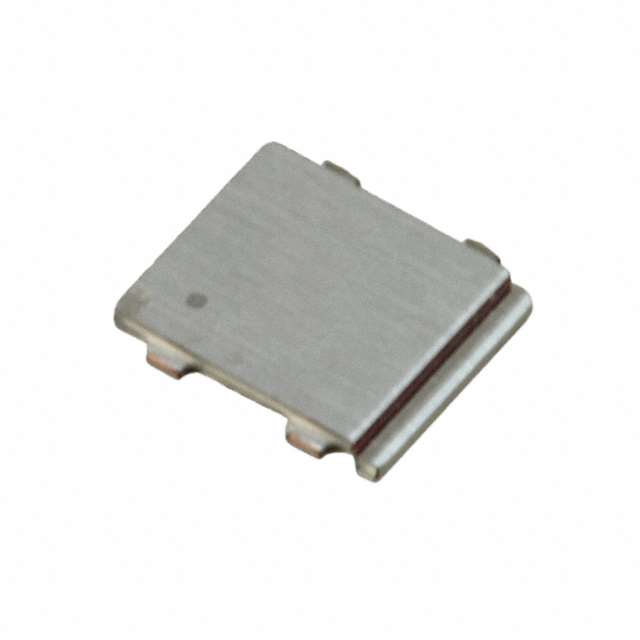

CSD87381P
MOSFET 2N-CH 30V 15A 5PTABManufacturer: Texas Instruments
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 15A 4W Surface Mount 5-PTAB (3x2.5)
Additional Information
Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 5-LGA |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 4W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 15A |
| Input Capacitance (Ciss) (Max) @ Vds | 564pF @ 15V |
| Rds On (Max) @ Id, Vgs | 16.3mOhm @ 8A, 8V |
| Gate Charge (Qg) (Max) @ Vgs | 5nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA |
| Supplier Device Package | 5-PTAB (3x2.5) |
