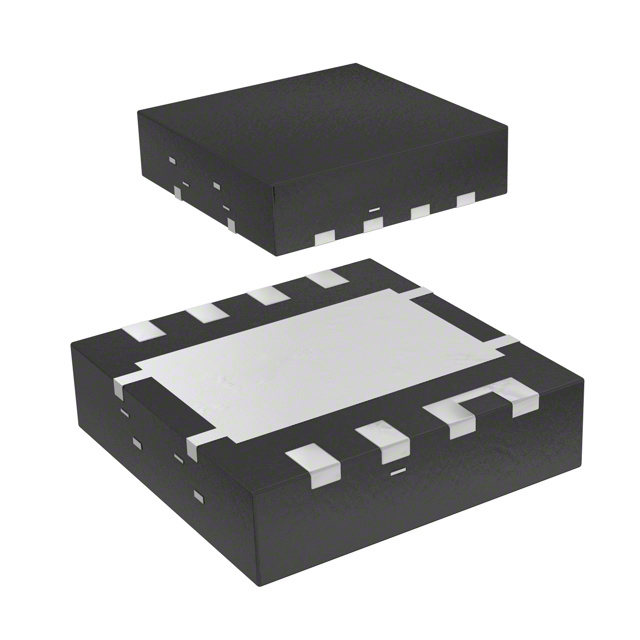

CSD87312Q3E
MOSFET 2N-CH 30V 27A 8VSONManufacturer: Texas Instruments
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 27A 2.5W Surface Mount 8-VSON (3.3x3.3)
Additional Information
Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Source |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.5W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 27A |
| Input Capacitance (Ciss) (Max) @ Vds | 1250pF @ 15V |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 7A , 8V |
| Gate Charge (Qg) (Max) @ Vgs | 8.2nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Supplier Device Package | 8-VSON (3.3x3.3) |
