CSD85301Q2T
MOSFET 2N-CH 20V 5A 6WSONManufacturer: Texas Instruments
Categories: FET, MOSFET Arrays
Quality Control: Learn More

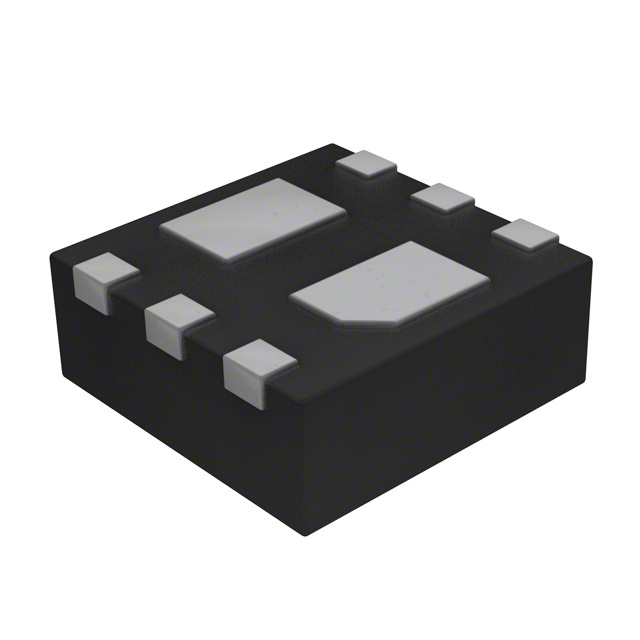

Mosfet Array 20V 5A 2.3W Surface Mount 6-WSON (2x2)
Additional Information
Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.3W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Input Capacitance (Ciss) (Max) @ Vds | 469pF @ 10V |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 5A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 5.4nC @ 4.5V |
| FET Feature | Logic Level Gate, 5V Drive |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | 6-WSON (2x2) |
Request a Quote
