VCE6467TZUTL1
IC DGTL MEDIA SOC 529FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More

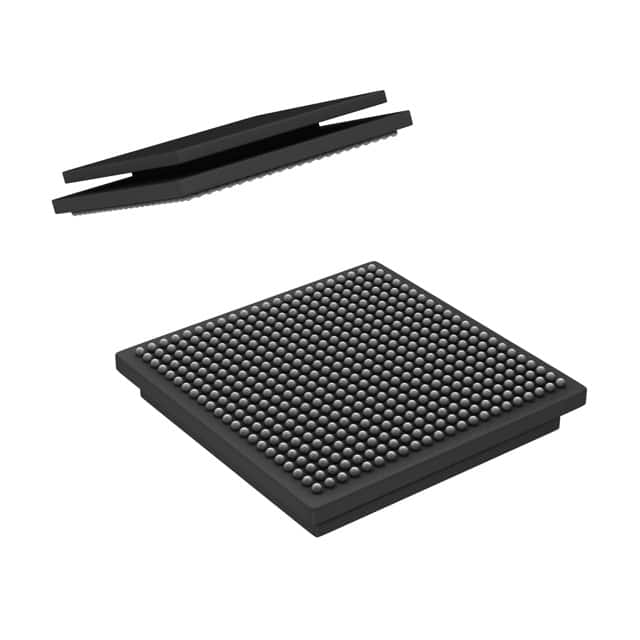

Texas Instruments TMS320DM646x, DaVinci™ VCE6467TZUTL1 is a Digital Media System-on-Chip (DMSoC) designed for high-performance embedded applications. This device integrates a 1GHz C64x+™ DSP core with a 500MHz ARM9™ processor for efficient multimedia processing. It features extensive peripheral connectivity including EBI/EMI, Ethernet, HPI, I2C, McASP, PCI, SPI, UART, and USB interfaces. On-chip memory includes 248kB of SRAM and 8kB of ROM. The VCE6467TZUTL1 is supplied in a 529-FCBGA (19x19) package for surface mounting and operates within a temperature range of 0°C to 85°C (TC). Core voltage is 1.30V with I/O voltages at 1.8V and 3.3V. This component is widely utilized in industrial control, video surveillance, and telecommunications sectors.
Additional Information
Series: TMS320DM646x, DaVinci™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 529-BFBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, HPI, I2C, McASP, PCI, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Non-Volatile Memory | ROM (8kB) |
| On-Chip RAM | 248kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.30V |
| Clock Rate | 1GHz DSP, 500MHz ARM® |
| Supplier Device Package | 529-FCBGA (19x19) |
