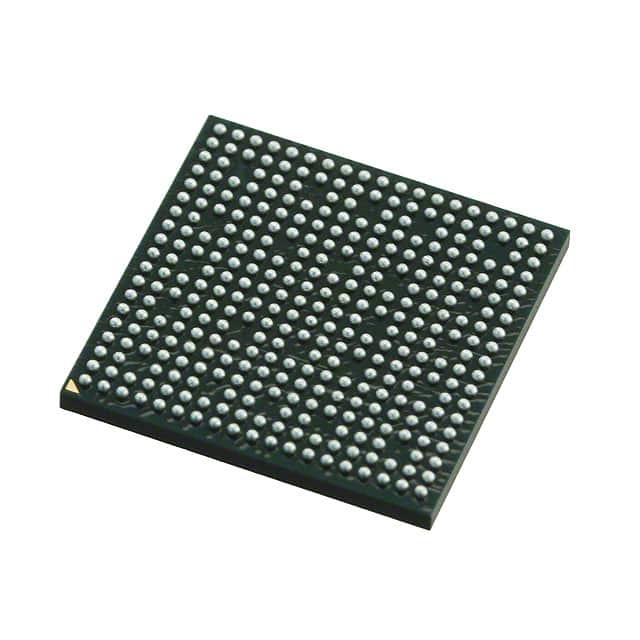

VCBU68WMCE30
IC SOC DGTL MEDIA PROC 338NFBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM3x DaVinci™ series digital media system-on-chip, part number VCBU68WMCE30. This device features a 432MHz clock rate and a 338-NFBGA package. It integrates a digital signal processor with peripherals including EBI/EMI, Ethernet, I2C, McBSP, SPI, UART, and USB interfaces. The VCBU68WMCE30 includes 56kB of on-chip RAM and 16kB of ROM. Core voltage is 1.35V, with I/O voltages at 1.8V and 3.3V. The operating temperature range is 0°C to 85°C (TC). This component is commonly utilized in video conferencing, digital video recorders, and audio/video processing applications. Supplied in tray packaging, the 338-BGA (13x13) package is designed for surface mounting.
Additional Information
Series: TMS320DM3x, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 338-LFBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, I2C, McBSP, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Non-Volatile Memory | ROM (16kB) |
| On-Chip RAM | 56kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.35V |
| Clock Rate | 432MHz |
| Supplier Device Package | 338-BGA (13x13) |
