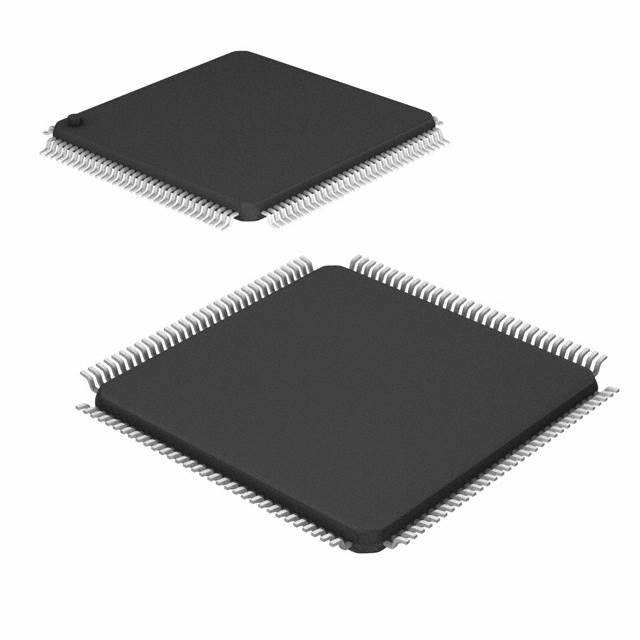

TMS320LBC57PBK80
IC DSP 128-LQFPManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320LBC57PBK80 is a fixed-point digital signal processor from the TMS320C5x series. This component operates at an 80MHz clock rate and features a 128-LQFP (14x14) package for surface mounting. On-chip memory includes 64kB of ROM and 14kB of RAM. Interface capabilities encompass BSP, HPI, and SSP. Designed for operation within a 0°C to 70°C ambient temperature range, this device is suitable for demanding applications in sectors such as telecommunications, industrial automation, and consumer electronics. The core and I/O voltages are both rated at 3.30V.
Additional Information
Series: TMS320C5xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Interface | BSP, HPI, SSP |
| Type | Fixed Point |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Non-Volatile Memory | ROM (64kB) |
| On-Chip RAM | 14kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 3.30V |
| Clock Rate | 80MHz |
| Supplier Device Package | 128-LQFP (14x14) |
