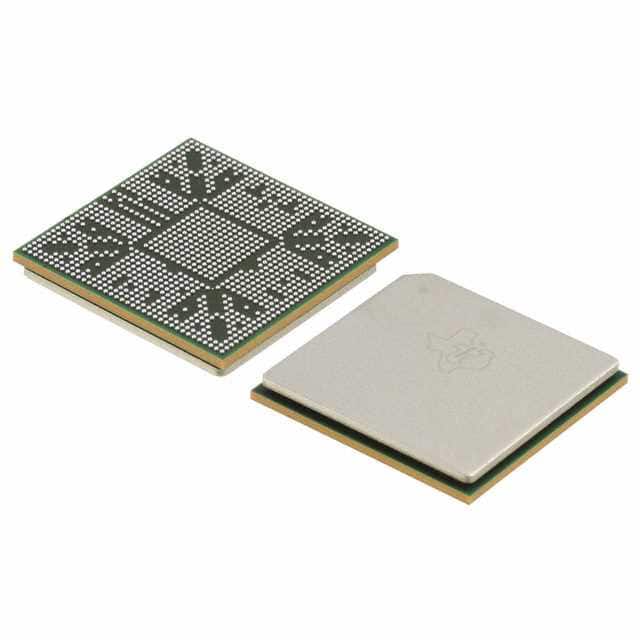

TMS320DM8168CCYGH
IC DGTL MEDIA PROCESSR 1031FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM8168CCYGH is a DaVinci™ DM81x Video System-on-Chip (SoC) designed for high-performance digital media processing. This device integrates an 800MHz DSP core and a 1.0GHz ARM® Cortex™-A8 processor, enabling complex video encoding, decoding, and analysis. It features extensive peripherals including EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, and USB, facilitating seamless system integration. The TMS320DM8168CCYGH offers 1.5MB of on-chip RAM and 48kB of ROM. It is available in a 1031-FCBGA (25x25) package suitable for surface mounting and operates within a junction temperature range of 0°C to 95°C. This SoC is widely utilized in video surveillance, industrial automation, and broadcast infrastructure applications.
Additional Information
Series: DM81x Video SOC, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1031-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Non-Volatile Memory | ROM (48kB) |
| On-Chip RAM | 1.5MB |
| Voltage - I/O | 1.5V, 1.8V, 3.3V |
| Voltage - Core | 1.00V |
| Clock Rate | 800MHz DSP, 1.0GHz ARM® |
| Supplier Device Package | 1031-FCBGA (25x25) |
